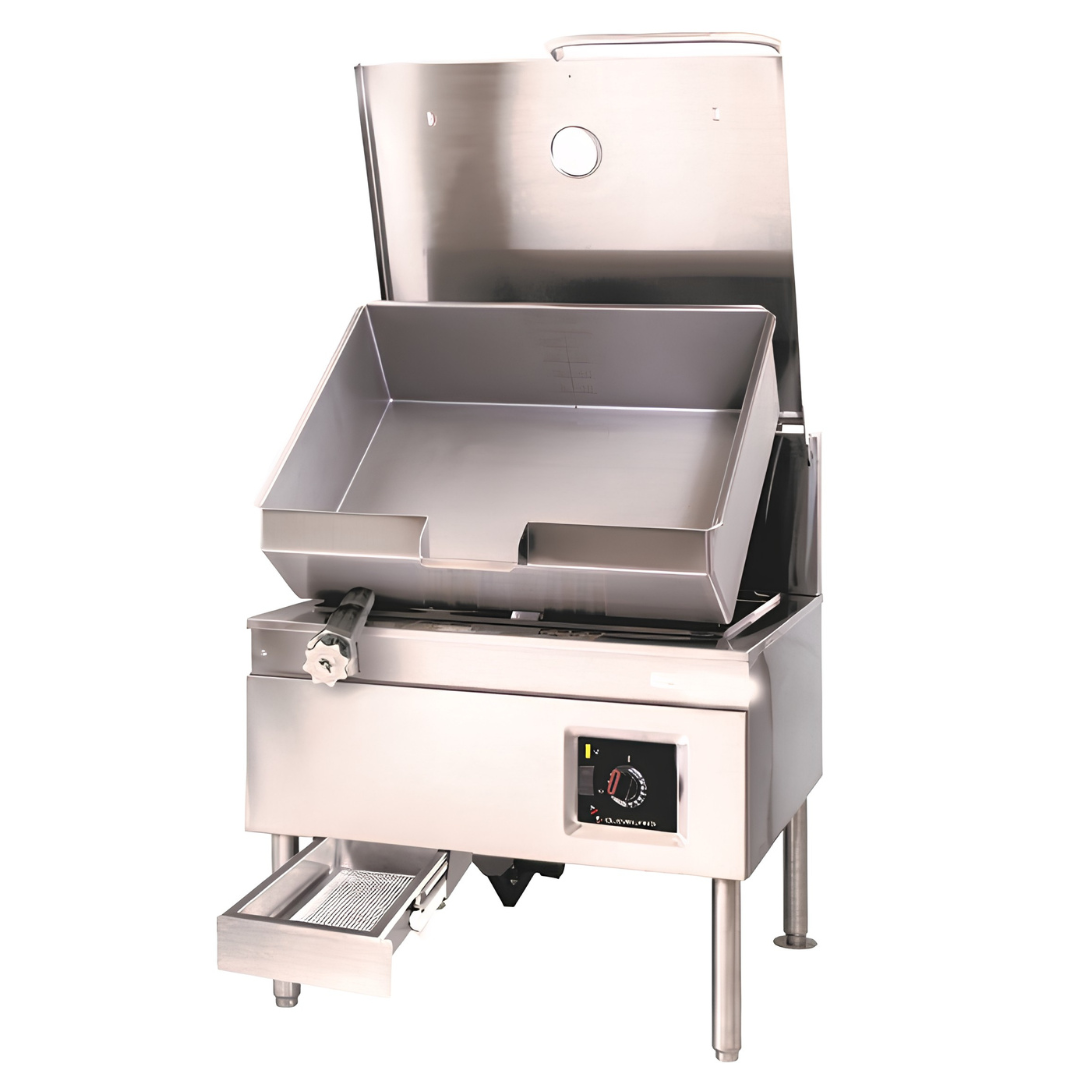

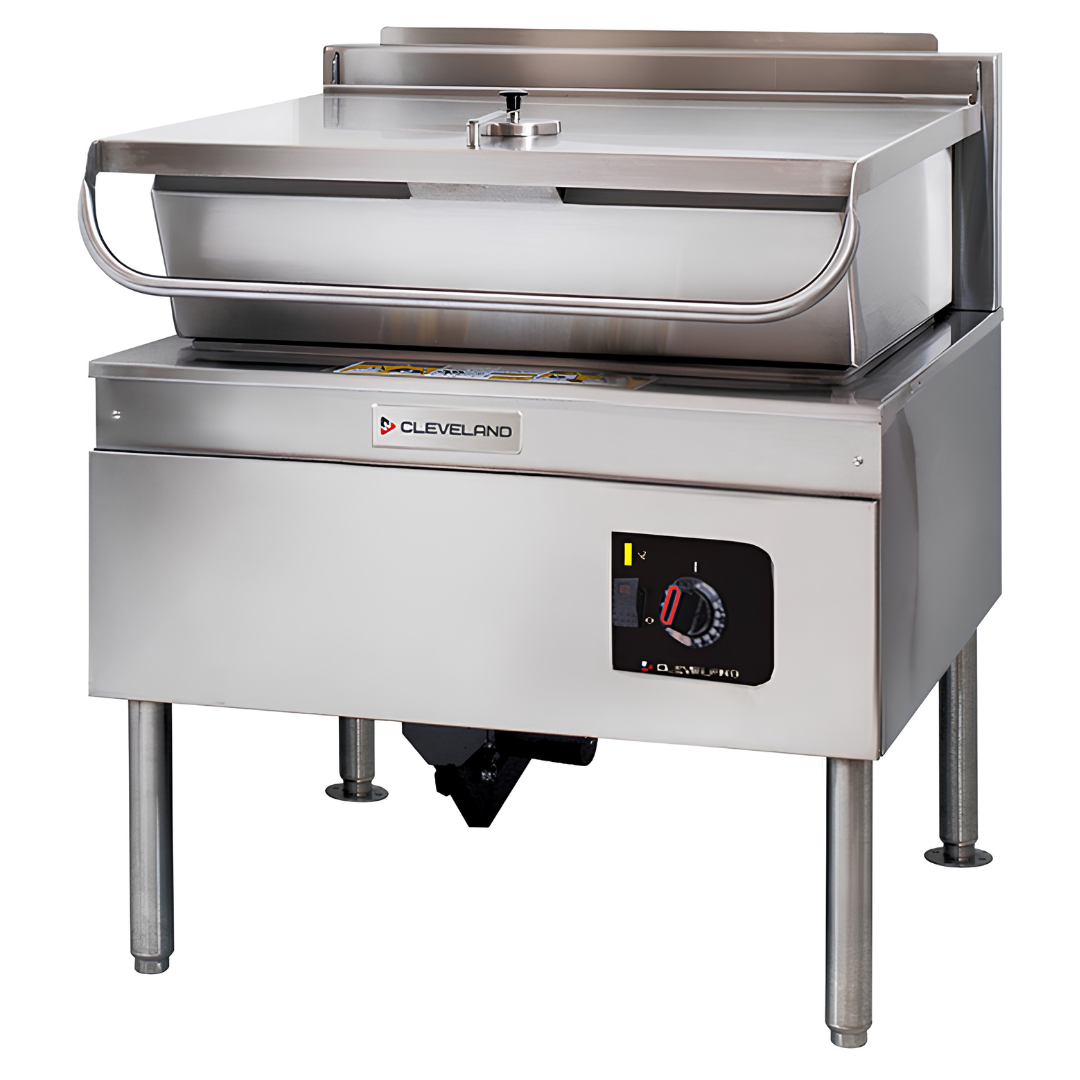

The Cleveland DuraPan Series SGL40TR is a 40-gallon (156-liter) gas-powered tilting braising pan with an open-base design and standard hydraulic hand tilt. Its stainless steel pan features coved corners and gallon and liter markings, while the 5/8-inch stainless steel-clad cooking surface provides even heat distribution and is guaranteed against warping.
This tilting skillet uses a high-efficiency 130,000 BTU/hr gas heating system with an adjustable electronic thermostat that controls temperatures from 100–425°F. It also features electronic spark ignition, splash-proof controls, a spring-assisted cover with an adjustable vent, and a hydraulic tilt system with a quick-lowering feature for controlled product discharge.
Key Features
- DuraPan Series gas tilting braising pan
- 40-gallon (156-liter) capacity
- Open-base design
- Standard hydraulic hand tilt
- Quick-lowering tilt feature
- High-efficiency gas heating system
- 130,000 BTU/hr heating capacity
- Even heat distribution
- Adjustable electronic thermostat
- Temperature range of 100–425°F
- Electronic spark ignition
- Approximately 11-minute preheat time
- Approximately 60 minutes to heat a full cold load to boiling
- Stainless steel-clad 5/8-inch cooking surface
- Cooking surface guaranteed against warping
- Bead-blasted cooking surface
- Stainless steel pan with coved corners
- Gallon and liter capacity markings
- Full capacity measured to the bottom of the pouring lip
- Anti-splash pouring lip
- Spring-assisted cover
- Adjustable cover vent
- Full-width cover handle
- Recessed ON/OFF switch
- Recessed thermostat control
- Green power indicator light
- Amber temperature-cycling indicator light
- Splash-proof controls
- Watertight electrical connections
- IPX6 water-resistance rating
- High-limit safety device set at 475°F / 246°C
- All-stainless-steel construction
- Four adjustable stainless steel feet
- Rear feet flanged for floor bolting
- Front-serviceable controls
- Natural gas or LP gas configurations available
- 120V control circuit
- Supplied with a 6-foot cord and plug
- Optional power tilt with hand-tilt override
- Optional 2-inch tangent draw-off valve
- Optional food strainer
- Optional pantry faucet
- Optional skillet filler
- Optional pre-rinse spray head
- Optional sliding drain drawer with splash screen
- Optional vegetable steamer and poaching pan accessories
- Typical approvals include AGA, CSA, CE, and NSF
Specifications
| Specification | Details |
|---|---|
| Series | DuraPan Series |
| Capacity | 40 gallons / 156 liters |
| Base Configuration | Open base |
| Tilt System | Hydraulic hand tilt with quick-lowering feature |
| Heating Capacity | 130,000 BTU/hr |
| Temperature Range | 100–425°F |
| Temperature Control | Adjustable electronic thermostat |
| Ignition System | Electronic spark ignition |
| Cooking Surface | 5/8-inch stainless steel-clad, bead-blasted surface |
| Pan Construction | Stainless steel with coved corners |
| Exterior Construction | Stainless steel |
| Capacity Markings | Gallon and liter markings |
| Cover | Spring assisted with adjustable vent and full-width handle |
| Pouring Lip | Anti-splash design |
| Indicator Lights | Green power indicator and amber temperature-cycling indicator |
| Water-Resistance Rating | IPX6 |
| High-Limit Safety Setting | 475°F / 246°C |
| Standard Gas Type | Natural gas |
| Optional Gas Type | LP gas |
| Gas Connection | 3/4-inch NPT |
| Natural Gas Supply Pressure | Minimum 5 inches W.C. |
| LP Gas Supply Pressure | Minimum 11 inches W.C. |
| Control Voltage | 120V |
| Frequency | 60Hz |
| Phase | Single phase |
| Current Draw | 1.8 amps |
| Electrical Connection | 6-foot cord and plug |
| Width | 48 inches / 1,220 mm |
| Depth | 37 inches / 940 mm |
| Height | 42 inches / 1,067 mm |
| Pan Surface Height | 35 inches / 889 mm |
| Cover-Open Height | 72 inches / 1,829 mm |
| Combustible-Surface Clearance | 0 inches at sides; 6 inches at rear |
| Noncombustible-Surface Clearance | 0 inches at sides and rear |
| Listed Weight | 622 lb / approximately 282 kg |
