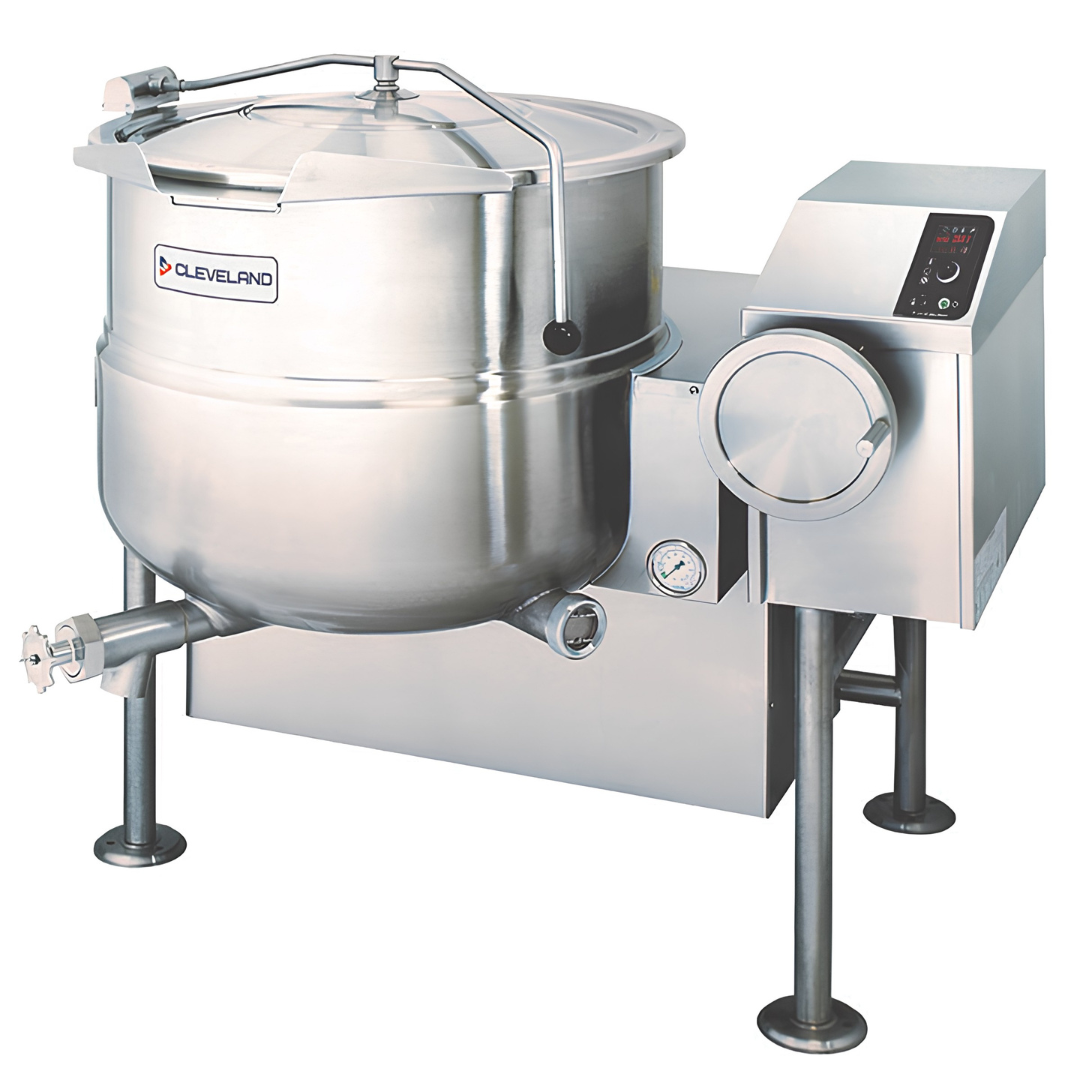

The Cleveland KGL40T is a 40-gallon self-contained gas tilting kettle designed for high-volume commercial batch cooking. Its 2/3 steam-jacketed construction and high-efficiency Power Burner heating system provide fast heat-up and recovery for cooking, simmering, and heating large quantities of food.
Standard solid-state controls provide an operating temperature range of 145°F to 260°F with less than ±1°C temperature variance. The control panel includes a power on/off control, a 1–10 temperature dial, and LED indicators for the heat cycle and low-water warning.
The kettle features a permanently filled 50 PSI steam jacket, insulated heat exchanger, automatic hot-surface ignition, front-mounted pressure/vacuum gauge, and a self-locking mechanical tilt system. Adjustable flanged feet allow the unit to be leveled and bolted securely to the floor.
Key Features
- 40-gallon / 150-liter capacity
- Self-contained floor-model configuration
- Tilting kettle design
- 2/3 steam-jacketed construction
- 50 PSI steam-jacket rating
- 140,000 BTU gas-fired heating system
- High-efficiency Power Burner heating system
- 62%–65% heating efficiency
- Insulated heat exchanger
- Fast heat-up and recovery
- Standard natural gas operation
- Propane gas option available
- Solid-state temperature controls
- Operating temperature range of 145°F to 260°F
- Less than ±1°C temperature variance
- Power on/off control
- 1–10 temperature dial
- LED heat-cycle indicator
- LED low-water warning indicator
- Permanently filled steam jacket
- Steam jacket filled with treated distilled water
- Jacket does not require routine venting or refilling
- Automatic hot-surface ignition system
- Front-mounted pressure/vacuum gauge
- Large pouring lip for faster product discharge
- Heavy-duty rolled rim for added reinforcement
- Mechanical tilt system with roller bearings
- Case-hardened self-locking worm-and-segment gear
- Type 316 stainless steel kettle
- #4 finish on kettle surface
- Adjustable support feet
- Flanged feet for floor bolting
- 6-foot electrical power cord
- 115V standard electrical controls
- Optional easyDial control panel
- Optional core temperature probe
- Optional spring-assisted cover
- Optional 2-inch tangent draw-off valve
- Optional hot-and-cold water faucet
- Typical approvals include AGA, CSA, CE, NSF and ASME
Specifications
| Specification | Details |
|---|---|
| Capacity | 40 gallons / 150 liters |
| Approximate 8 oz. Servings | 640 |
| Steam Jacket Coverage | 2/3 jacketed |
| Steam Jacket Rating | 50 PSI |
| Gas Input | 140,000 BTU per hour |
| Heating Efficiency | 62%–65% |
| Standard Fuel | Natural gas |
| Optional Fuel | Propane gas |
| Operating Temperature Range | 145°F–260°F / 63°C–127°C |
| Temperature Accuracy | Less than ±1°C variance |
| Controls | Solid-state standard controls |
| Temperature Adjustment | 1–10 dial setting |
| Control Indicators | Heat cycle and low-water warning LEDs |
| Ignition | Automatic hot-surface ignition |
| Gas Connection | 3/4" NPT |
| Gas Supply Pressure | 4"–14" W.C. |
| Electrical Requirements | 115–120V, 60Hz, single phase |
| Electrical Connection | 6-foot cord and plug |
| Electrical Current | 5 amps at 120V |
| Shipping Weight | 520 lb / 235 kg |
| Right-Side Clearance | 0 in; allow at least 12 in for service access |
| Left-Side Clearance | 0 in |
| Rear Clearance | 3 in |
| Kettle Construction | Type 316 stainless steel with #4 finish |
| Tilt Mechanism | Roller bearings with self-locking worm-and-segment gear |
| Heat Exchanger | Insulated |
| Pressure Gauge | Front-mounted pressure/vacuum gauge |
| Support | Adjustable flanged feet for floor bolting |
| Typical Approvals | AGA, CSA, CE, NSF and ASME |
