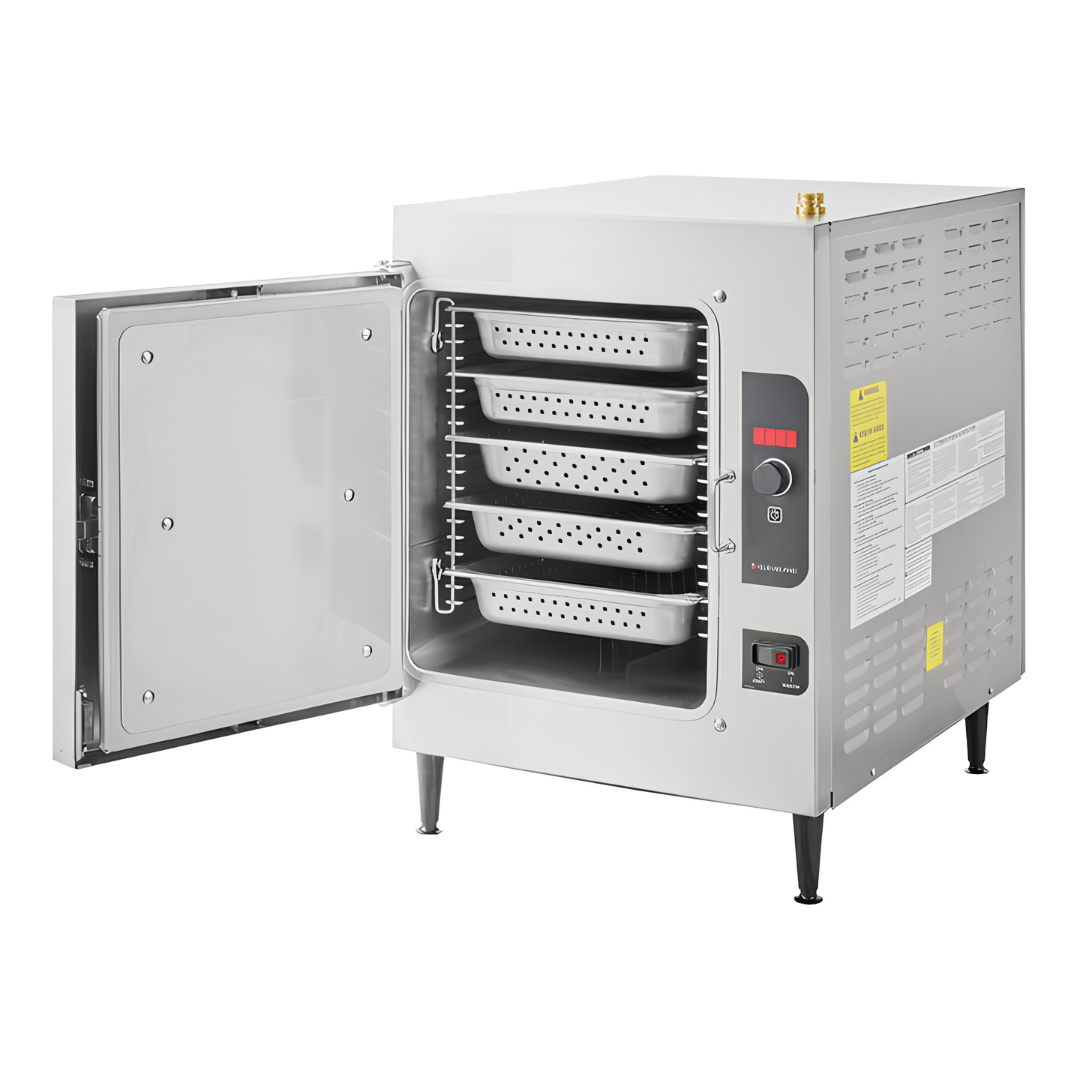

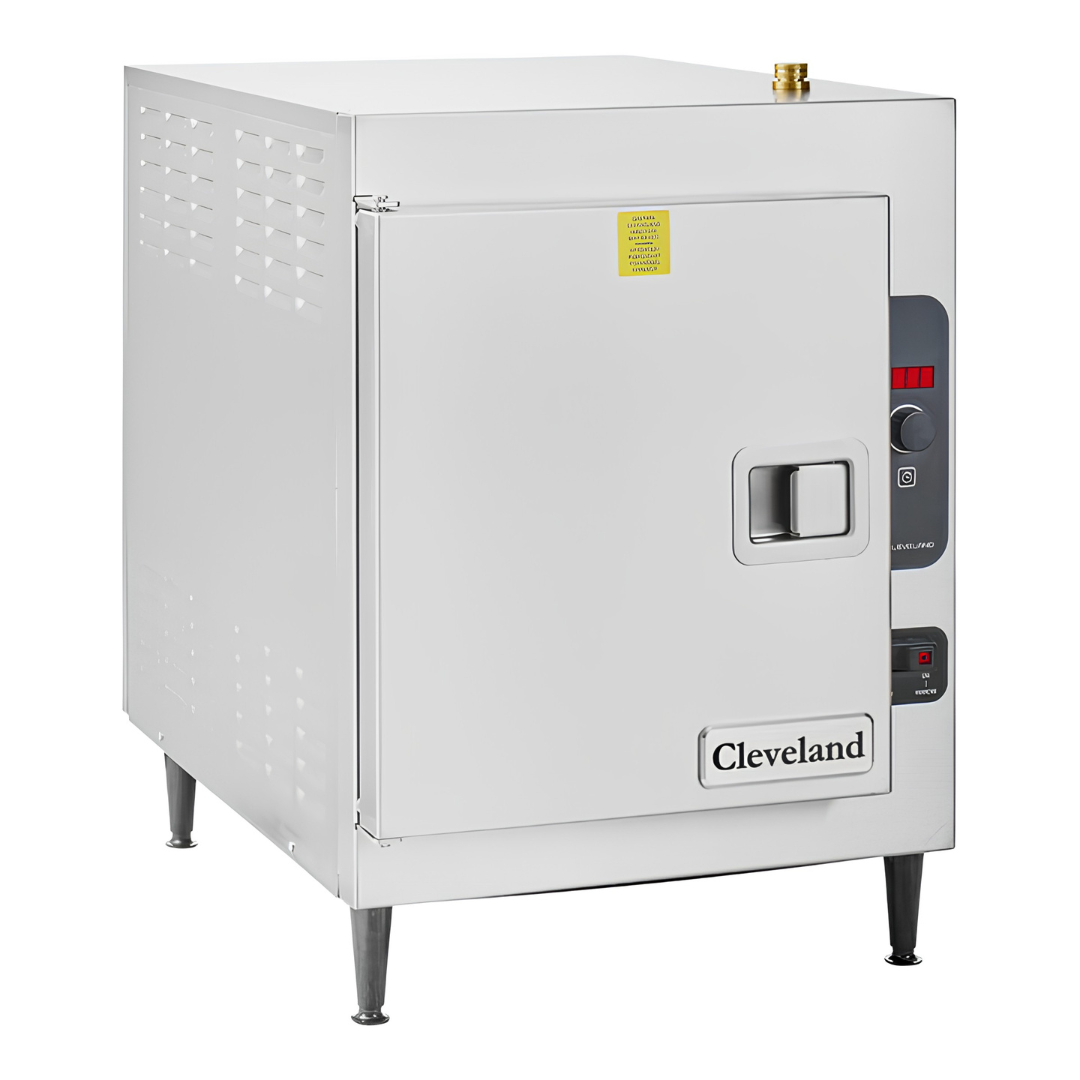

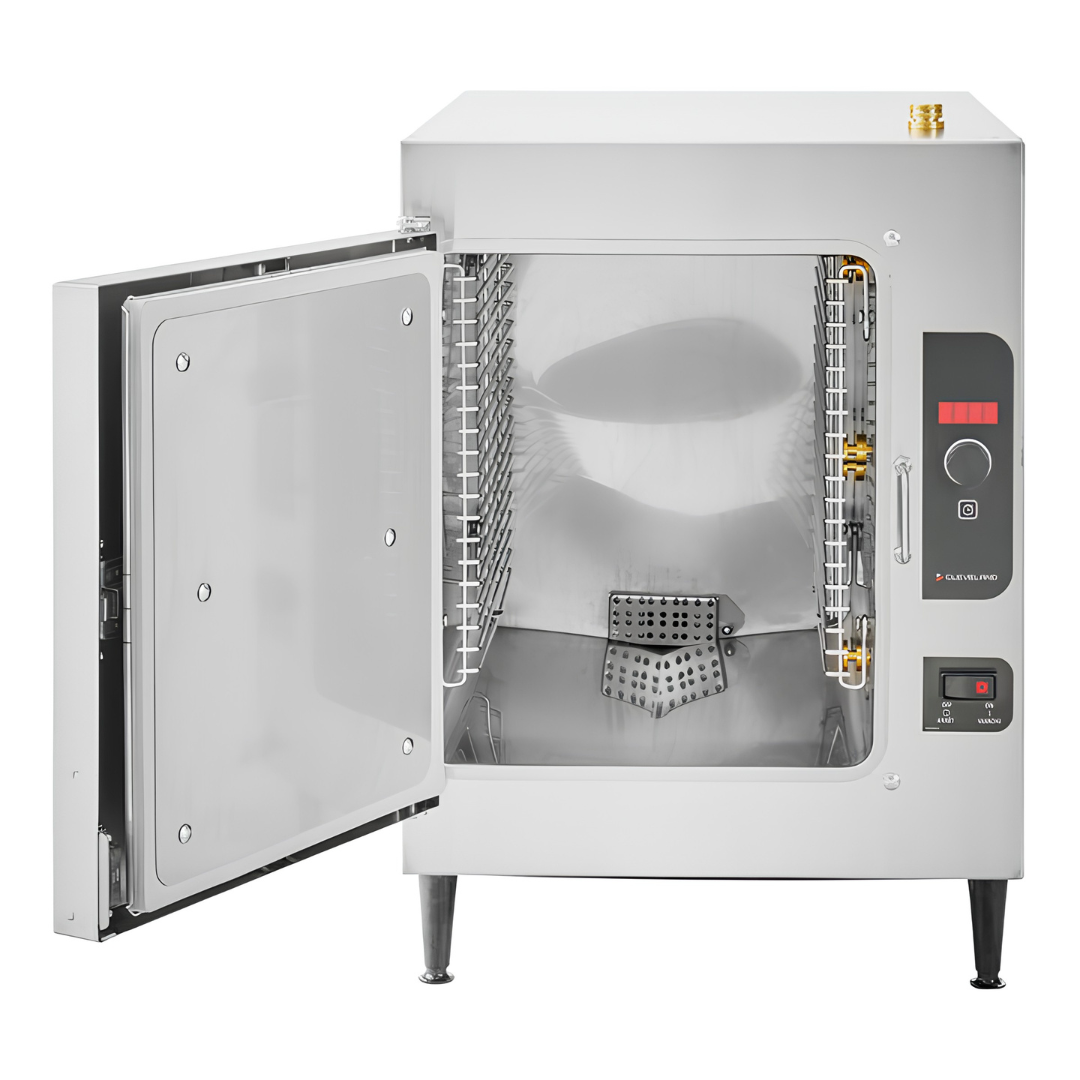

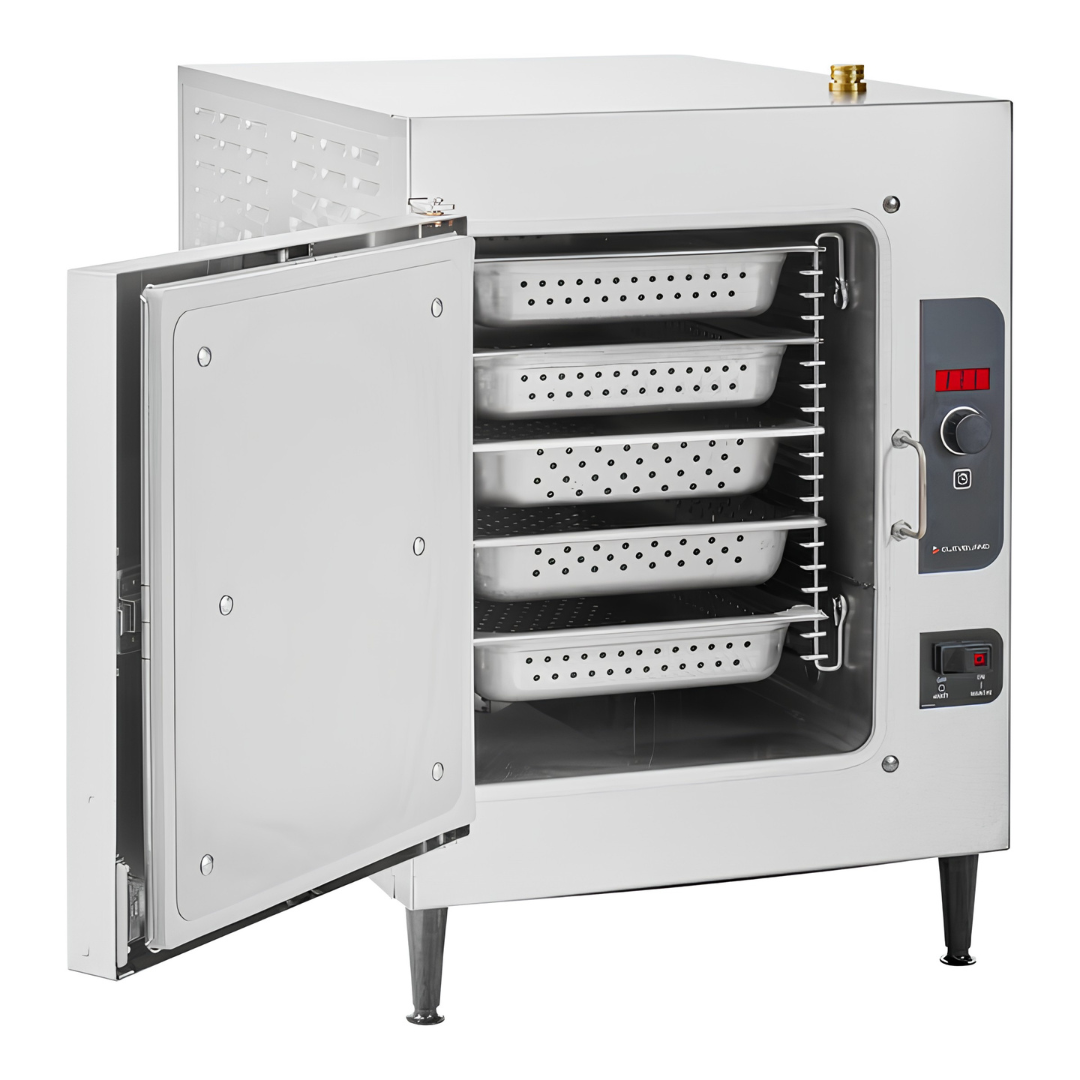

The Cleveland SteamCraft® Ultra 5 is a countertop pressureless convection steamer designed to accommodate up to five 12" x 20" x 2-1/2" deep steam table pans. Its compact, single-compartment design is supported by a rear-mounted 16 kW electric steam generator for commercial steaming applications.
The PowerPak generator features two stainless steel FireBar heating elements, a 5-gallon reservoir, automatic water fill, instant steam standby, and an automatic drain with a Water Jet spray-rinse cycle. Remote probe-type water-level controls and an external generator cleaning port provide convenient access for routine operation and maintenance.
High-velocity brass steam jets circulate convection steam without fans. The insulated cooking compartment includes coved corners, removable stainless steel slide racks, a cold-water condenser, and a two-piece cool-to-the-touch door with a reversible gasket and stainless steel slam/latch mechanism.
Key Features
- SteamCraft® Ultra 5 series
- Single-compartment countertop configuration
- Pressureless convection steaming
- Holds up to five 12" x 20" x 2-1/2" deep steam table pans
- 16 kW electric steam generator
- Rear-mounted and fully insulated PowerPak generator
- Two stainless steel FireBar heating elements
- 5-gallon generator reservoir
- Automatic generator water fill
- Instant steam standby mode
- Automatic generator drain
- Water Jet spray-rinse drain cleaning cycle
- External top-mounted generator cleaning port
- Remote probe-type water-level control
- EasyTimer with 99-minute digital readout
- SureCook load-compensating timer
- Manual constant-steam mode
- LED descale indicator
- Brass steam jets generate high-velocity convection steam without fans
- Coved cooking compartment corners distribute steam evenly and simplify cleaning
- Cold-water condenser helps maintain dry steam
- Fully insulated cooking compartment
- Removable stainless steel slide racks
- Two-piece cool-to-the-touch compartment door
- Free-floating inner door with reversible gasket
- Stainless steel slam/latch door mechanism
- Left-hand door hinging with controls on the right
- Right-hand door hinging available as an option
- Heavy-duty stainless steel construction
- 14-gauge stainless steel compartment door, cavity, and generator
- 4-inch adjustable legs
- Available in multiple voltages
- Three-phase electrical configuration
- Optional stainless steel stand and stacking equipment
- UL/NSF #4 compliant
Specifications
| Specification | Details |
|---|---|
| Series | SteamCraft® Ultra 5 |
| Pan Capacity | Up to five 12" x 20" x 2-1/2" deep steam table pans |
| Number of Compartments | 1 |
| Generator Configuration | Rear-mounted insulated electric steam generator |
| Generator Reservoir | 5 gallons |
| Heating Input | 16 kW nominal |
| Electrical Phase | 3 phase |
| Available Voltages | 208V, 220V, 240V, 360V, 380V, 415V, 440V or 480V |
| Electrical Load at 208V | 16,300 watts / 45.9 amps |
| Electrical Load at 220V | 13,694 watts / 36.5 amps |
| Electrical Load at 240V | 16,300 watts / 39.8 amps |
| Electrical Load at 360V | 14,621 watts / 23.8 amps |
| Electrical Load at 380V | 16,300 watts / 25.1 amps |
| Electrical Load at 415V | 16,300 watts / 23.0 amps |
| Electrical Load at 440V | 13,694 watts / 18.2 amps |
| Electrical Load at 480V | 16,300 watts / 19.9 amps |
| Water Pressure | 35 PSI minimum; 60 PSI maximum |
| Water Connections | Two 3/4" NH-F garden-hose-thread connections |
| Drain Connection | 1-1/4" NPT IPS-M |
| Width | 21 in |
| Depth | 28.25 in |
| Height | 29 in |
| Shipping Weight | 248 lb |
| Shipping Dimensions | 30" W x 35" D x 36" H |
| Leg Height | 4 in |
| Right-Side Clearance | 3 in |
| Left-Side Clearance | 3 in |
| Rear Clearance | 3 in |
| Door Hinging | Left-hand standard; right-hand optional |
| Construction | Heavy-duty stainless steel |
| Door, Cavity and Generator Construction | 14-gauge stainless steel |
| Controls | EasyTimer with digital readout, load compensation and manual constant-steam mode |
| Water-Level Control | Remote automatic probe-type control |
| Approval | UL/NSF #4 |
