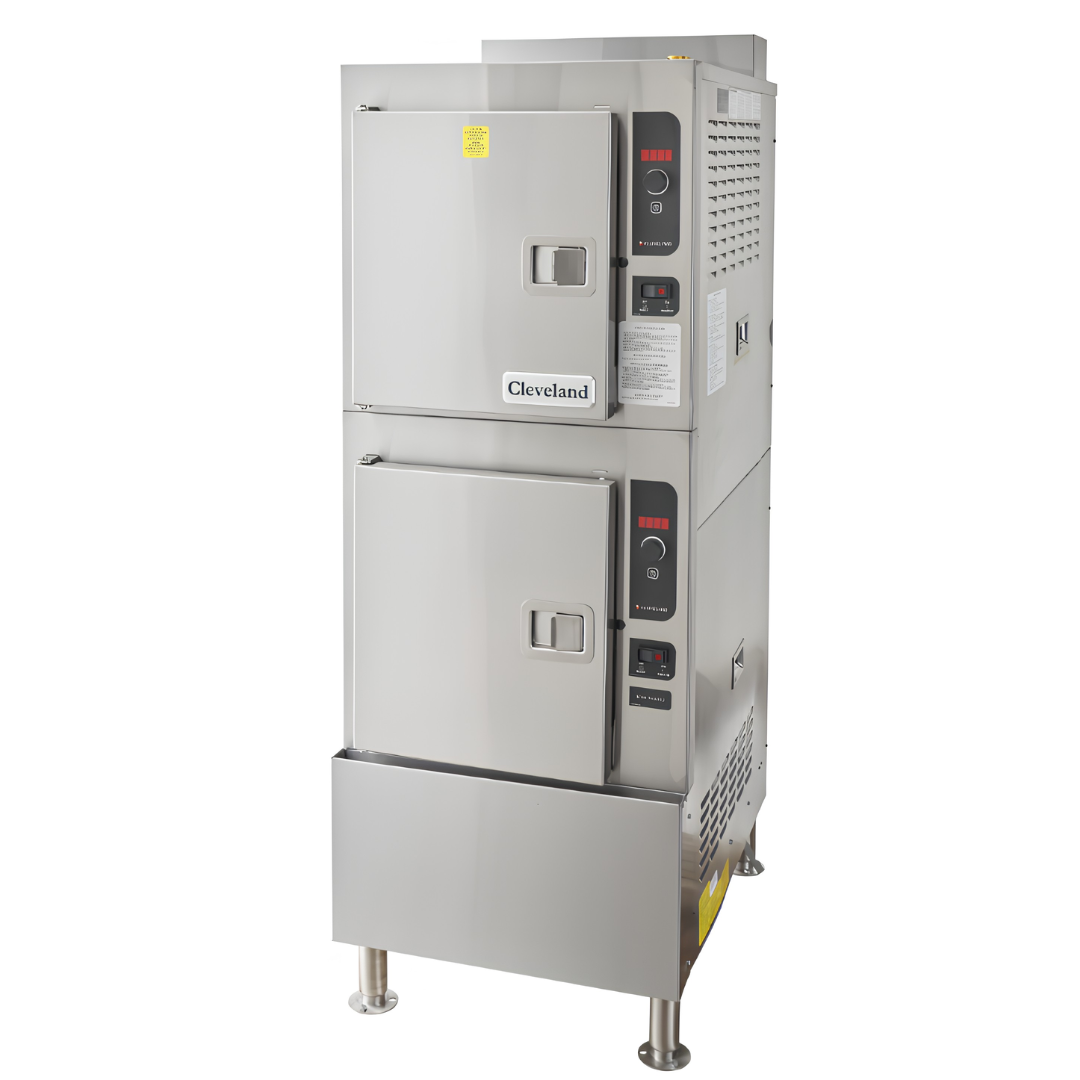

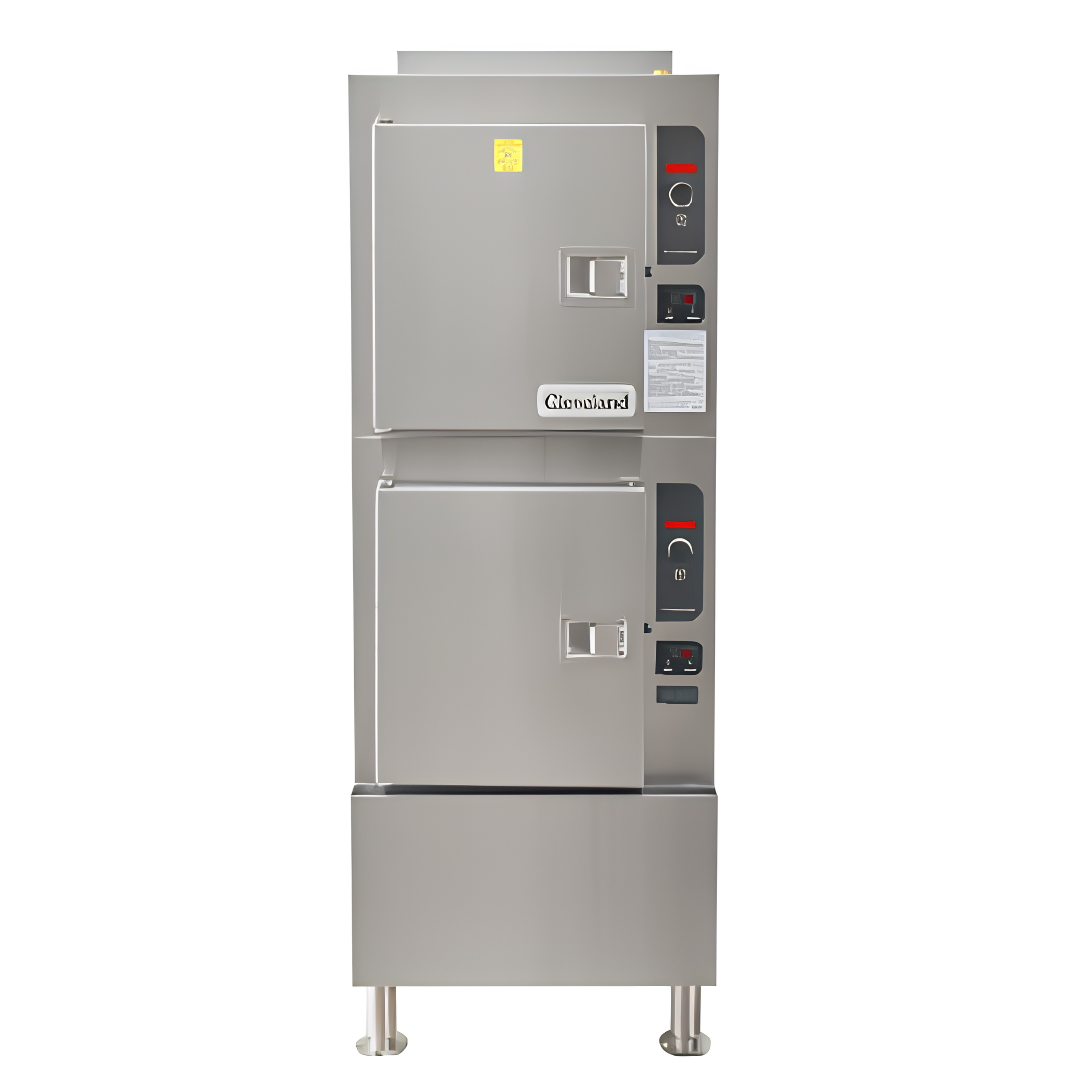

The Cleveland SteamCraft® Gemini™ 10 is a two-compartment floor-model pressureless convection steamer designed for high-volume commercial foodservice applications. It accommodates up to ten 12" x 20" x 2-1/2" deep steam table pans, with five pans held in each independently operated compartment.
Two fully insulated, rear-mounted vertical electric steam generators provide 16 kW of heating power per compartment. Each generator has two 8 kW FireBar heating elements and a 5-gallon reservoir. The independent generator configuration allows each cooking compartment to operate separately according to production requirements.
The unit features automatic water fill, automatic generator draining, instant steam standby, remote probe-type water-level controls, and external cleaning ports. High-velocity brass steam jets distribute convection steam without fans, while cold-water condensers help maintain dry steam inside the insulated cooking compartments.
Key Features
- SteamCraft® Gemini™ 10 series
- Two-compartment floor-model configuration
- Pressureless convection steaming
- Holds up to ten 12" x 20" x 2-1/2" deep steam table pans
- Five-pan capacity per compartment
- Twin independent vertical electric steam generators
- 16 kW heating power per generator
- 32 kW nominal total heating input
- Two 8 kW FireBar heating elements per generator
- 5-gallon generator reservoir for each compartment
- Fully insulated rear-mounted generators
- Independently operated cooking compartments
- Automatic generator water fill
- Automatic generator drain
- Water Jet spray-rinse drain cleaning cycle
- Instant steam standby mode
- External top-mounted cleaning port for each generator
- Remote probe-type water-level controls
- High-velocity probe-rinse cycle helps reduce mineral buildup
- EasyTimer with 99-minute digital readout
- SureCook load-compensating timer
- Manual constant-steam mode
- LED descale indicator for each compartment
- Brass steam jets produce convection steam without fans
- Coved cooking compartment corners for even steam distribution and easier cleaning
- Cold-water condenser for each compartment
- Fully insulated cooking compartments
- Removable stainless steel slide racks
- Two-piece cool-to-the-touch compartment doors
- Free-floating inner doors with reversible gaskets
- Stainless steel slam/latch door mechanism
- Left-hand door hinging with controls on the right
- Field-reversible door hinging
- Compartment door steam shutoff switch
- Condensate drip trough below the lower compartment door
- Type 430 stainless steel exterior and cooking compartments
- 14-gauge stainless steel generators, doors, and cooking cavities
- 6-inch adjustable stainless steel legs with flanged feet
- Low-wattage option available
- CSA and UL/NSF #4 compliant
Specifications
| Specification | Details |
|---|---|
| Series | SteamCraft® Gemini™ 10 |
| Pan Capacity | Up to ten 12" x 20" x 2-1/2" deep steam table pans |
| Compartment Capacity | Five pans per compartment |
| Number of Compartments | 2 |
| Generator Configuration | Twin independent vertical atmospheric electric steam generators |
| Generator Reservoir | 5 gallons per generator |
| Heating Input | 16 kW per generator |
| Nominal Total Heating Input | 32 kW |
| Heating Elements | Two 8 kW FireBar elements per generator |
| Electrical Phase | 3 phase |
| Available Standard Voltages | 208V, 220V, 240V, 440V or 480V |
| Electrical Load at 208V | 32,600 watts / 91.7 amps |
| Electrical Load at 220V | 27,393 watts / 72.9 amps |
| Electrical Load at 240V | 32,600 watts / 79.5 amps |
| Electrical Load at 440V | 27,393 watts / 36.4 amps |
| Electrical Load at 480V | 32,600 watts / 39.8 amps |
| Water Pressure | 35 PSI minimum; 60 PSI maximum |
| Water Connection | 3/4" NH-F garden hose thread |
| Drain Connection | 1-1/2" IPS-M |
| Width | 24 in |
| Depth | 33 in |
| Height | 65.5 in |
| Shipping Weight | 528 lb / 240 kg |
| Leg Height | 6 in |
| Right-Side Clearance | 3 in |
| Left-Side Clearance | 3 in |
| Rear Clearance | 3 in |
| Door Hinging | Left-hand standard; field reversible |
| Exterior and Compartments | Type 430 stainless steel |
| Door, Cavity and Generator Construction | 14-gauge stainless steel |
| Controls | EasyTimer with digital readout, load compensation and manual constant-steam mode |
| Water-Level Control | Remote automatic probe-type controls |
| Approvals | CSA and UL/NSF #4 |
