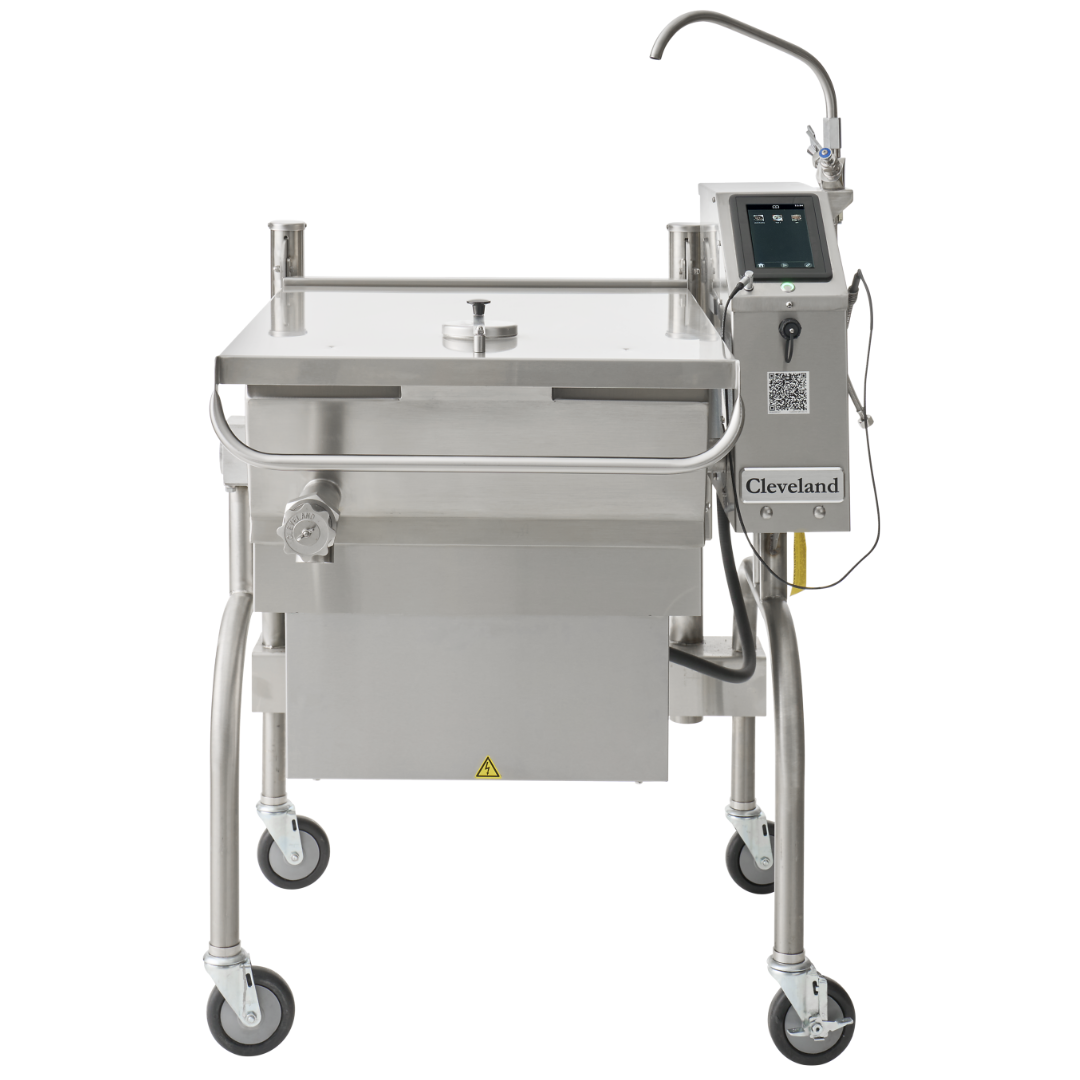

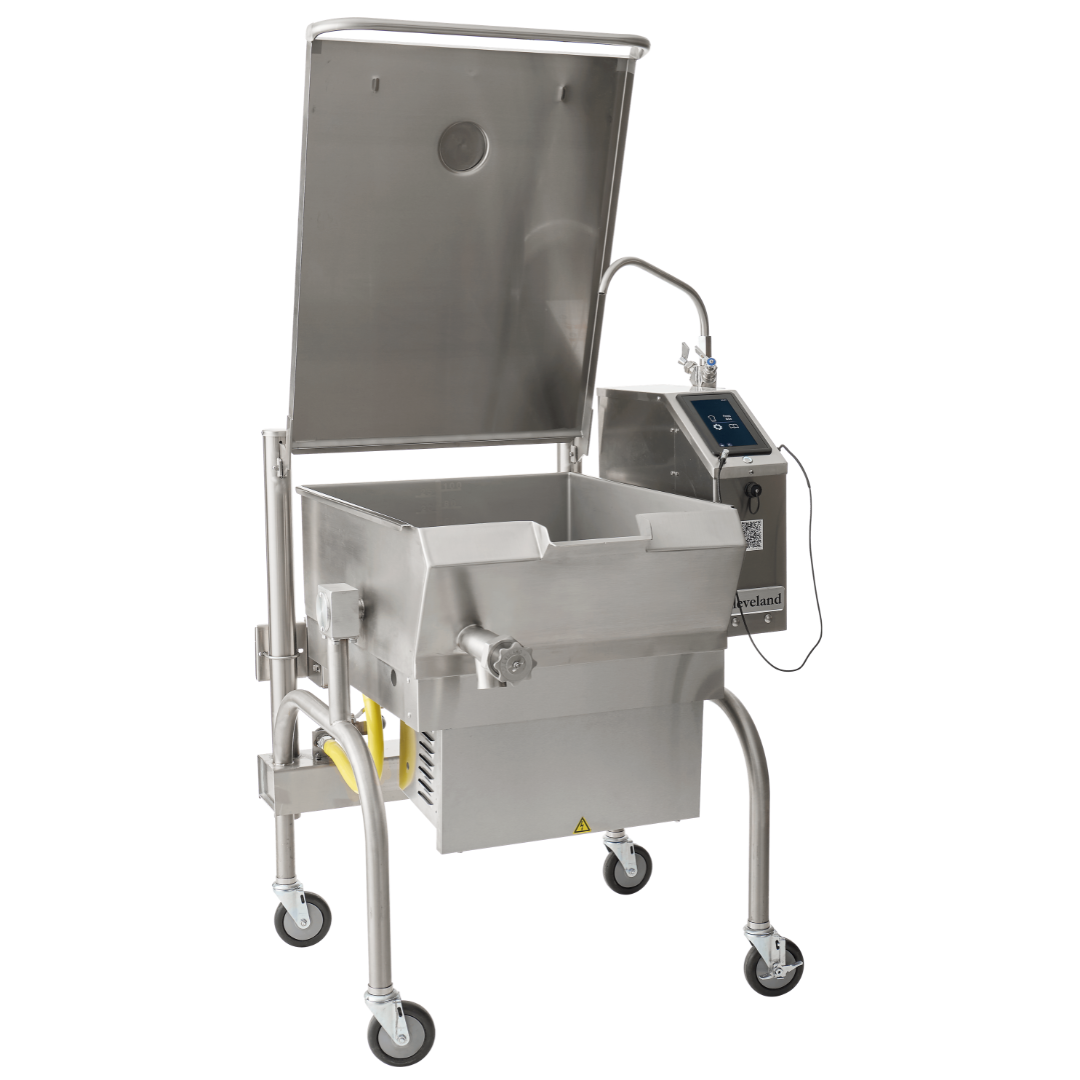

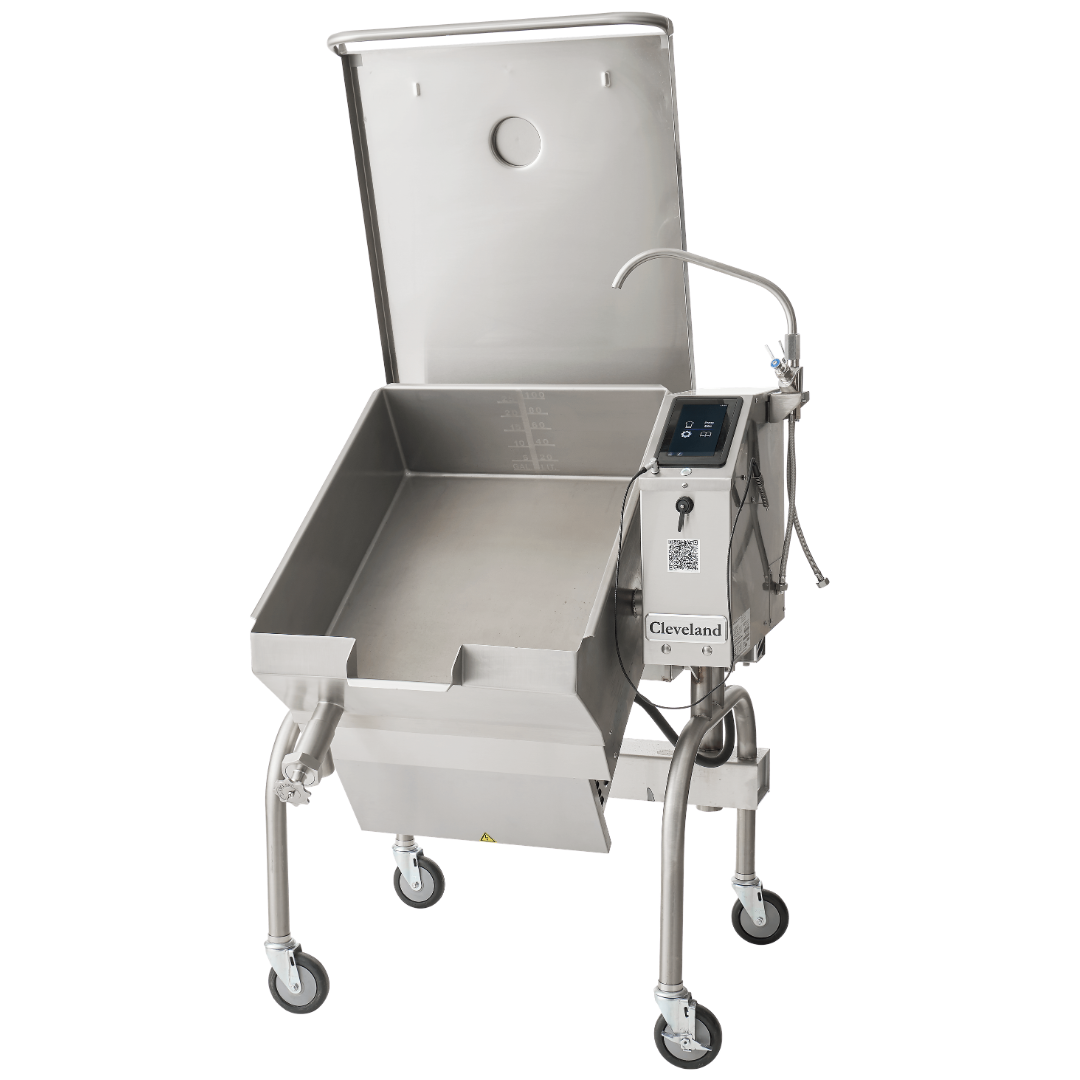

The Cleveland PowerPan Series SGL40T1 is a 40-gallon (156-liter) gas-powered tilting braising pan equipped with standard controls and a manual hand-tilt system. Its open-base design provides access for cleaning and maintenance, while the low 35-inch rim height supports easier loading, operation, and cleaning.
This tilting skillet features a forced-air gas combustion system with dual power settings of 160,000 and 200,000 BTU/hr. Its 5/8-inch stainless steel-clad cooking surface has a bead-blasted finish, while the 12-gauge Type 304 stainless steel pan and clad bottom promote even temperature distribution. Standard controls include a temperature-control dial, LED power indicator, and a main power switch with standard and high-power settings.
Key Features
- PowerPan Series gas tilting braising pan
- 40-gallon (156-liter) capacity
- Open-base design
- Standard manual hand tilt
- Enclosed, permanently lubricated tilt gearbox
- Optional power tilt with manual override
- Forced-air gas combustion system
- Automatic electronic spark ignition
- Dual power cooking settings
- 160,000 BTU/hr standard power setting
- 200,000 BTU/hr high power setting
- Standard control panel
- Temperature-control dial
- LED power indicator
- Main power switch with standard and high-power settings
- Adjustable solid-state thermostat
- Temperature range of 140–425°F
- 10-degree tilt cooking feature
- Continues heating when tilted up to 10 degrees
- 5/8-inch stainless steel-clad cooking surface
- Bead-blasted cooking-surface finish
- Cooking surface designed to resist warping and food adhesion
- 12-gauge Type 304 stainless steel pan
- 5/8-inch mild-steel clad bottom
- 1/16-inch stainless steel plate
- Even temperature distribution
- Low 35-inch rim height
- Splash-proof controls and construction
- Gallon and liter capacity markings
- Spring-assisted cover
- Full-width cover handle
- Adjustable cover vent
- Adjustable feet
- Rear flanged feet for floor bolting
- Front bullet-style feet
- Natural gas or LP gas configurations available
- Supplied with cord and plug for 115V controls
- Optional easyDial control system
- Optional easyTouch control system
- Optional core temperature probe with compatible controls
- Optional 2-inch tangent draw-off valve
- Optional pantry faucet
- Optional pan carrier
- Optional vegetable steamer baskets
- Optional poaching pans
- Optional hot-and-cold-water pre-rinse spray head
- Typical approvals include AGA, CSA, CE, and NSF
Specifications
| Specification | Details |
|---|---|
| Series | PowerPan Series |
| Capacity | 40 gallons / 156 liters |
| Base Configuration | Open base |
| Tilt System | Manual hand tilt with enclosed, permanently lubricated gearbox |
| Standard Power Setting | 160,000 BTU/hr |
| High Power Setting | 200,000 BTU/hr |
| Burner System | Forced-air gas combustion |
| Temperature Range | 140–425°F |
| Temperature Control | Adjustable solid-state thermostat |
| Standard Control Panel | Temperature dial, LED power indicator, and standard/high-power switch |
| Ignition System | Electronic spark ignition |
| Cooking Feature | Continues heating when tilted up to 10 degrees |
| Cooking Surface | 5/8-inch stainless steel-clad surface with bead-blasted finish |
| Pan Construction | 12-gauge Type 304 stainless steel |
| Clad Bottom | 5/8-inch mild steel with 1/16-inch stainless steel plate |
| Cover | Spring assisted with full-width handle and vent |
| Capacity Markings | Gallon and liter markings |
| Standard Gas Type | Natural gas |
| Optional Gas Type | LP gas |
| Gas Connection | 3/4-inch NPT |
| Natural Gas Supply Pressure | Minimum 5 inches W.C. |
| LP Gas Supply Pressure | Minimum 11 inches W.C. |
| Control Voltage | 120V |
| Frequency | 60Hz |
| Phase | Single phase |
| Current Draw | 1.4 amps |
| Power Connection | Cord and plug supplied |
| Overall Width | 49 7/8 inches / 1,267 mm |
| Pan Surface Width | 36 1/2 inches / 928 mm |
| Overall Depth | 41 inches / 1,042 mm |
| Overall Height | 39 inches / 991 mm |
| Rim Height | 35 inches / 889 mm |
| Cover-Open Height | 71 inches / 1,804 mm |
| Pan Depth | 9 1/2 inches / 241 mm |
| Right-Side Clearance | 4 inches / 102 mm with manual tilt |
| Left-Side Clearance | 0 inches |
| Rear Clearance | 0 inches from noncombustible wall; 3 1/2 inches from combustible wall |
| Listed Weight | 610 lb / 277 kg |
