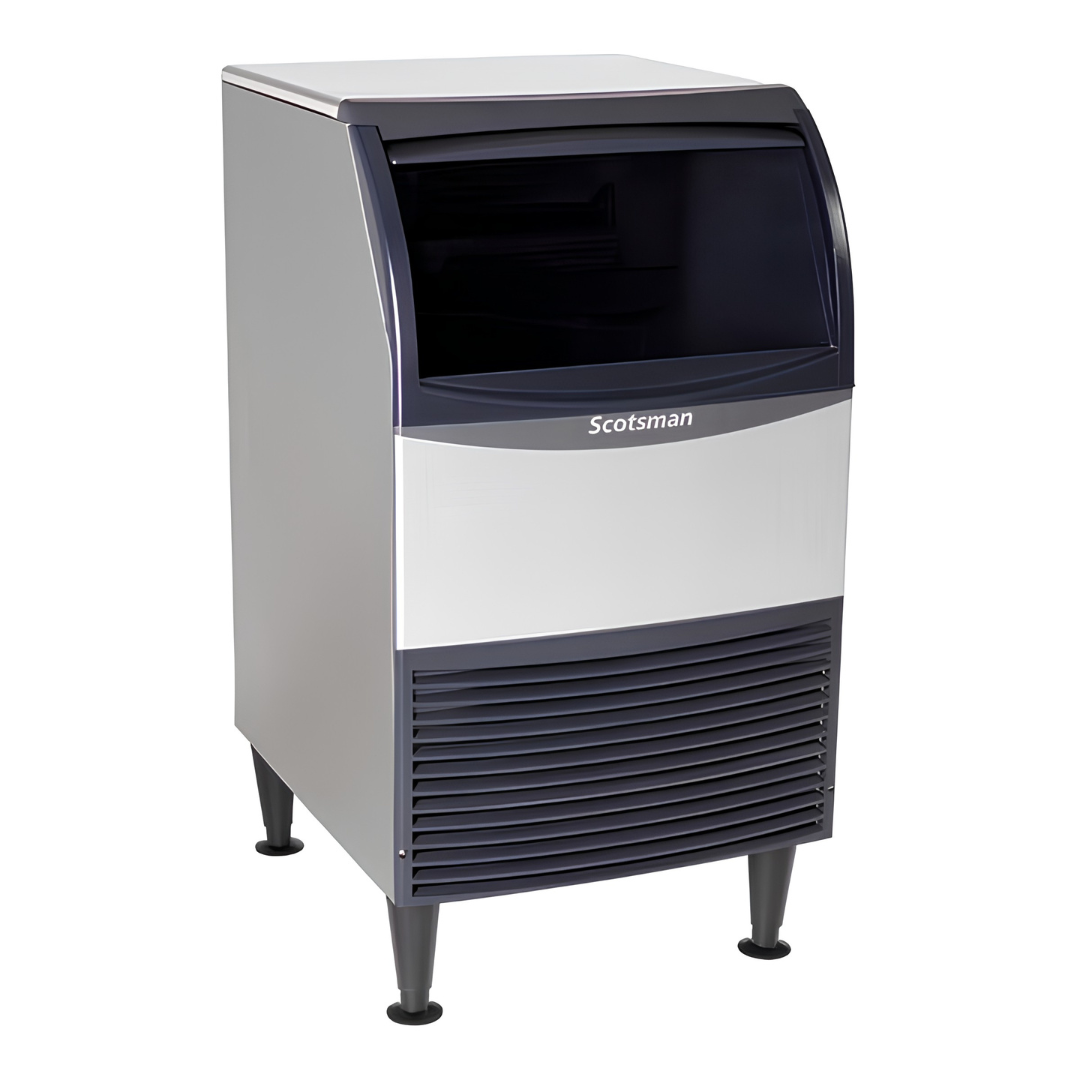

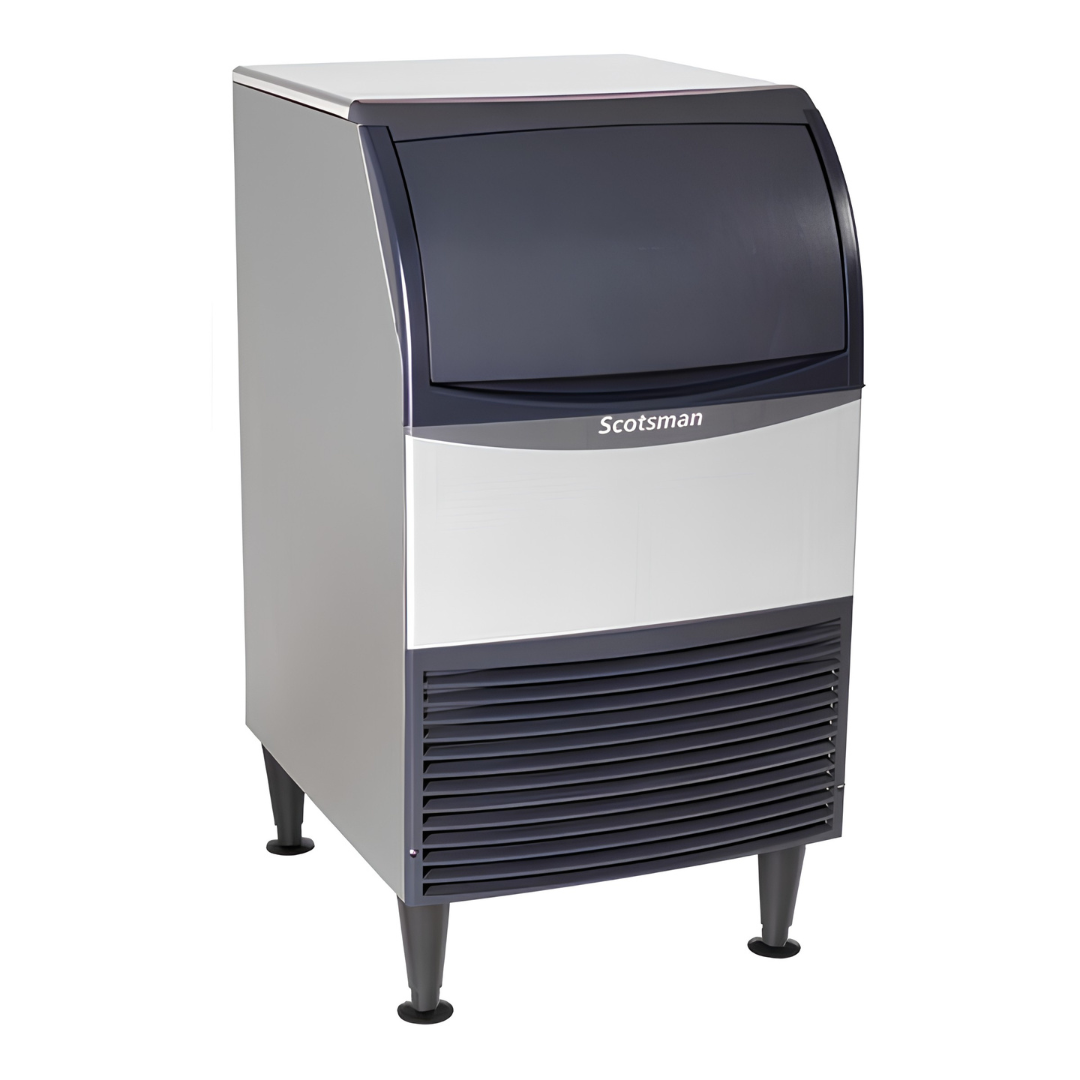

The Scotsman UN1520AX-1 is a self-contained, air-cooled undercounter ice machine designed to produce Scotsman’s Original Chewable® Nugget Ice. It produces up to 167 lb. of nugget ice per 24 hours under 70°F air and 50°F water conditions and includes an insulated storage bin with a capacity of up to 57 lb.
Its compact 20-inch-wide cabinet and front-breathing design allow installation in confined spaces without requiring side clearance for normal airflow. The unit uses R290 refrigerant and features a stainless steel evaporator and auger, sealed maintenance-free bearings, corrosion-resistant exterior panels, an ergonomic slide-back bin door, and a unit-specific QR code for service and warranty information.
Key Features
- Self-contained commercial undercounter nugget ice machine
- Produces Scotsman Original Chewable® Nugget Ice
- Maximum production of 167 lb. per 24 hours at 70°F air and 50°F water
- Produces 125 lb. per 24 hours at 90°F air and 70°F water
- Built-in insulated storage bin holds up to 57 lb. of ice
- Compact 20-inch-wide cabinet

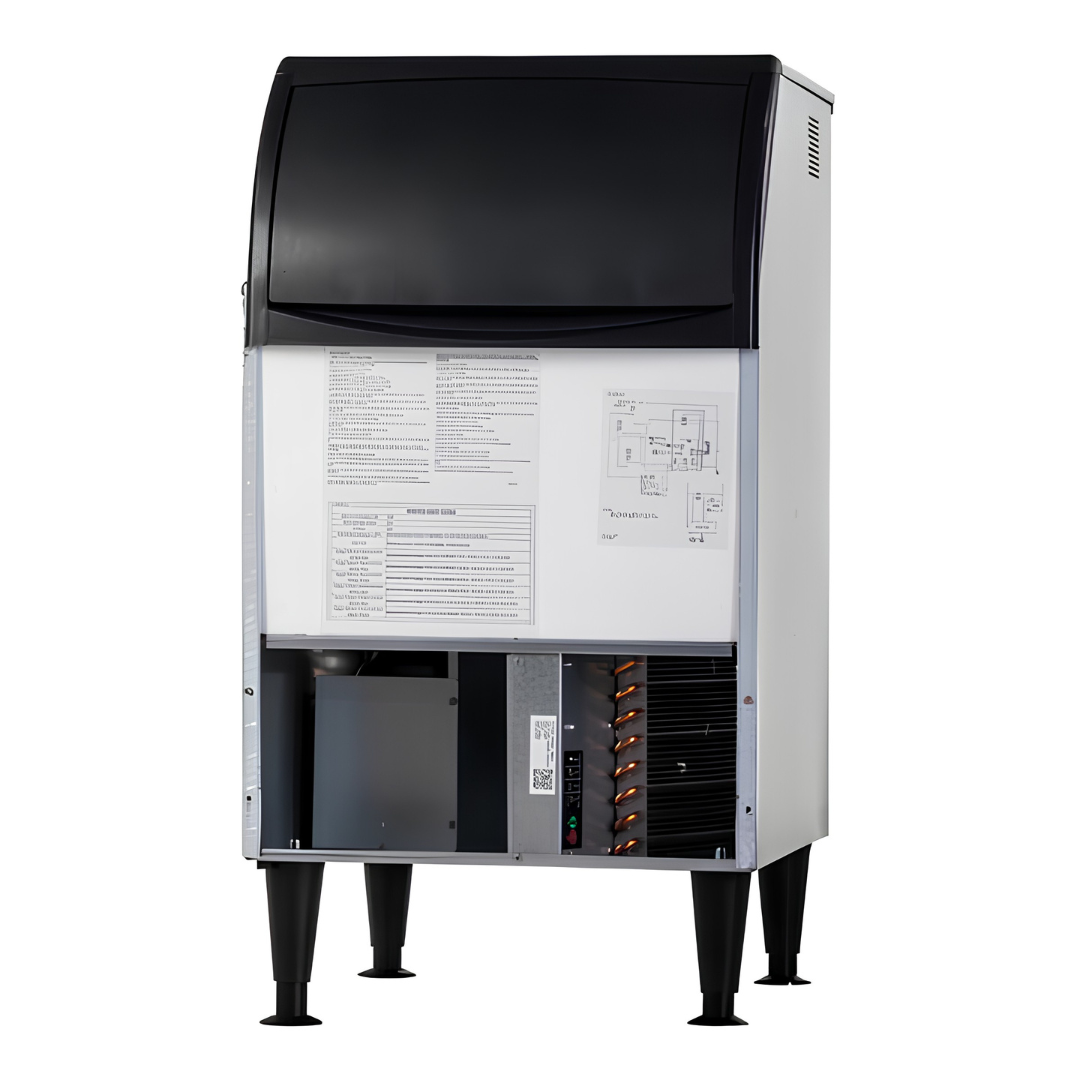

- Front-breathing airflow design
- No side clearance required for normal airflow
- Can be installed into cabinetry when the front ventilation openings remain unobstructed

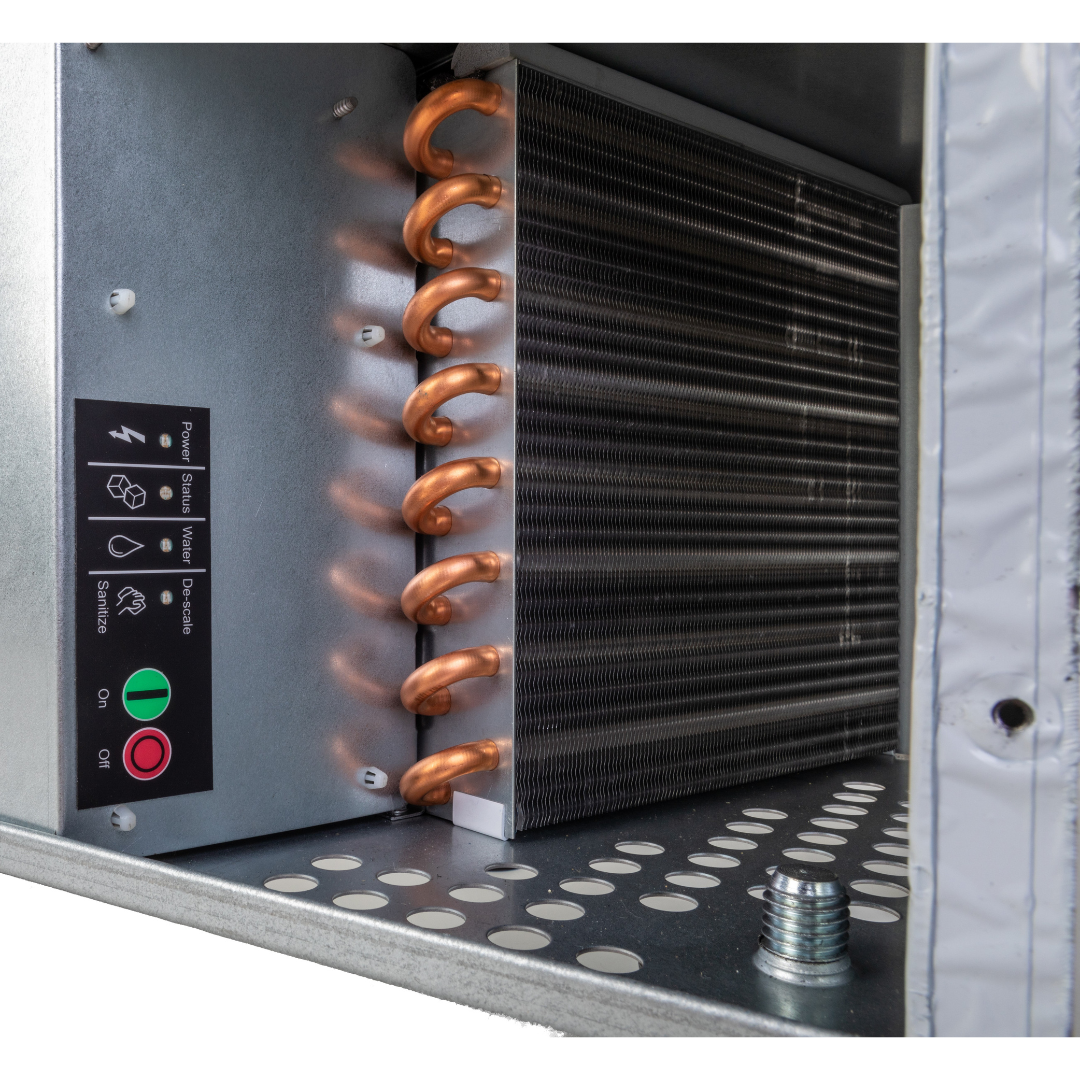

- Air-cooled refrigeration system
- Uses environmentally responsible R290 refrigerant
- Sealed, maintenance-free bearings reduce preventive maintenance requirements

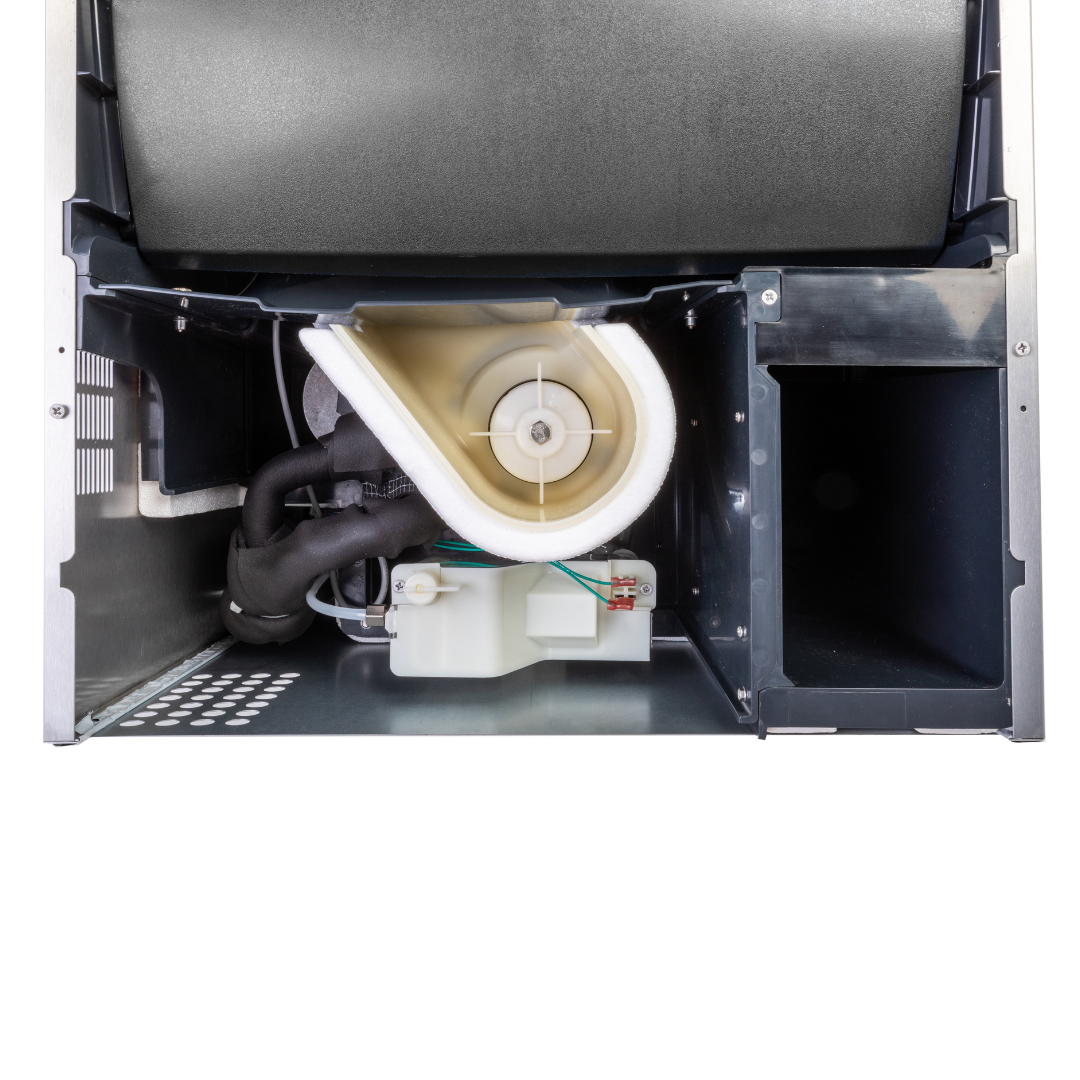

- Stainless steel evaporator and auger provide durability
- Heavy-duty, rust-free front panel
- Corrosion-resistant aluminum-alloy side panels

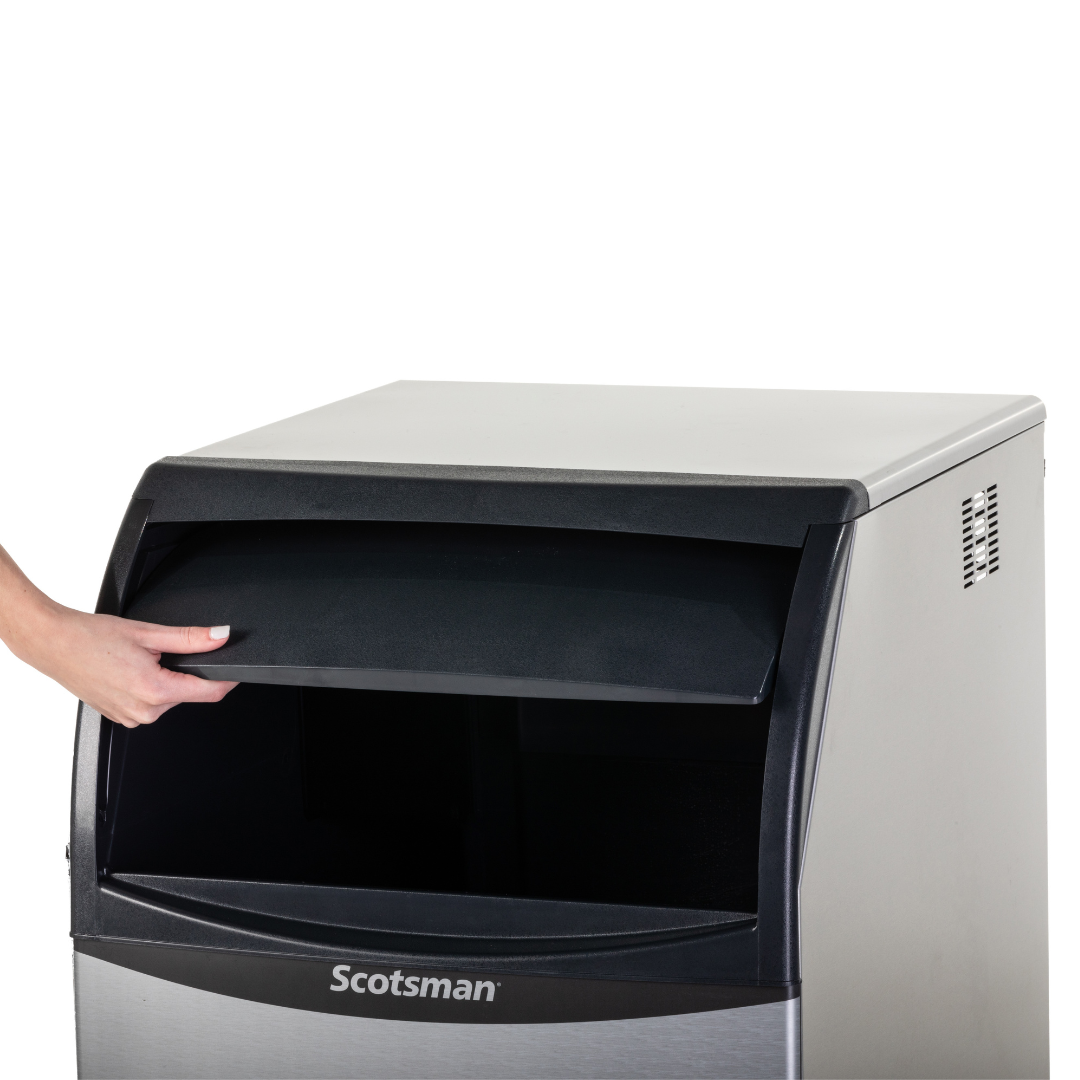

- Ergonomic slide-back door provides access to stored ice
- Intuitive control panel with status and maintenance indicators
- Unit-specific QR code provides access to service manuals and warranty information
- Optional floor-mounting kit can lower the installation height for use under a 34-inch ADA counter
- Included ice scoop
- Included adjustable legs
- Included power cord
- Includes a NEMA 5-15P plug
- Requires a gravity drain
- Built-in air-gap backflow protection
- Requires a cold potable water connection
- Requires 115V / 60Hz / single-phase electrical service
- ENERGY STAR® certified
- Meets U.S. Safe Drinking Water Act low-lead requirements
- NSF certified
- cETLus listed
- AHRI certified
- Three-year parts and labor warranty
- Designed, engineered, and assembled in the USA
Specifications
| Specification | Details |
|---|---|
| Product Type | Self-contained undercounter nugget ice machine with storage bin |
| Ice Type | Original Chewable® Nugget Ice |
| Condenser Type | Air-cooled |
| Maximum Ice Production | 167 lb. per 24 hours at 70°F air / 50°F water |
| Ice Production at Higher Temperatures | 125 lb. per 24 hours at 90°F air / 70°F water |
| Storage Capacity | 57 lb. |
| Width | 20 in. |
| Depth | Approximately 24 in. |
| Height | Approximately 38 in. with standard legs |
| Cabinet Height Without Legs | 31.94 in. |
| Shipping Carton Dimensions | 22 in. W × 27 in. D × 38 in. H |
| Shipping Weight | 129 lb. |
| Installation | Undercounter or freestanding |
| Ventilation | Front-breathing |
| Required Side Clearance | No additional side clearance required for normal airflow |
| Recommended Rear Utility Clearance | 4 in. |
| Refrigerant | R290 |
| Electrical Requirements | 115V / 60Hz / 1 phase |
| Electrical Connection | Cord-connected |
| Plug Type | NEMA 5-15P |
| Heat Rejection | 4,100 BTU per hour |
| Energy Consumption | 5.23 kWh per 100 lb. of ice |
| Potable Water Consumption | 12 gal. per 100 lb. of ice |
| Operating Air Temperature | 50–100°F |
| Operating Water Temperature | 40–100°F |
| Potable Water Pressure | 15–80 PSI |
| Minimum Water Conductivity | 10 microsiemens/cm |
| Water Supply Connection | Included 5 ft. × 1/4 in. OD plastic inlet tube |
| Drain Connection | 3/4 in. FPT gravity drain |
| Evaporator Material | Stainless steel |
| Auger Material | Stainless steel |
| Front Panel | Heavy-duty, rust-free construction |
| Side Panels | Corrosion-resistant aluminum alloy |
| Bin Door | Ergonomic slide-back design |
| Floor-Mounting Kit | Optional KUFM20 |
| Certifications | ENERGY STAR®, NSF, cETLus, and AHRI |
| Country of Assembly | USA |
