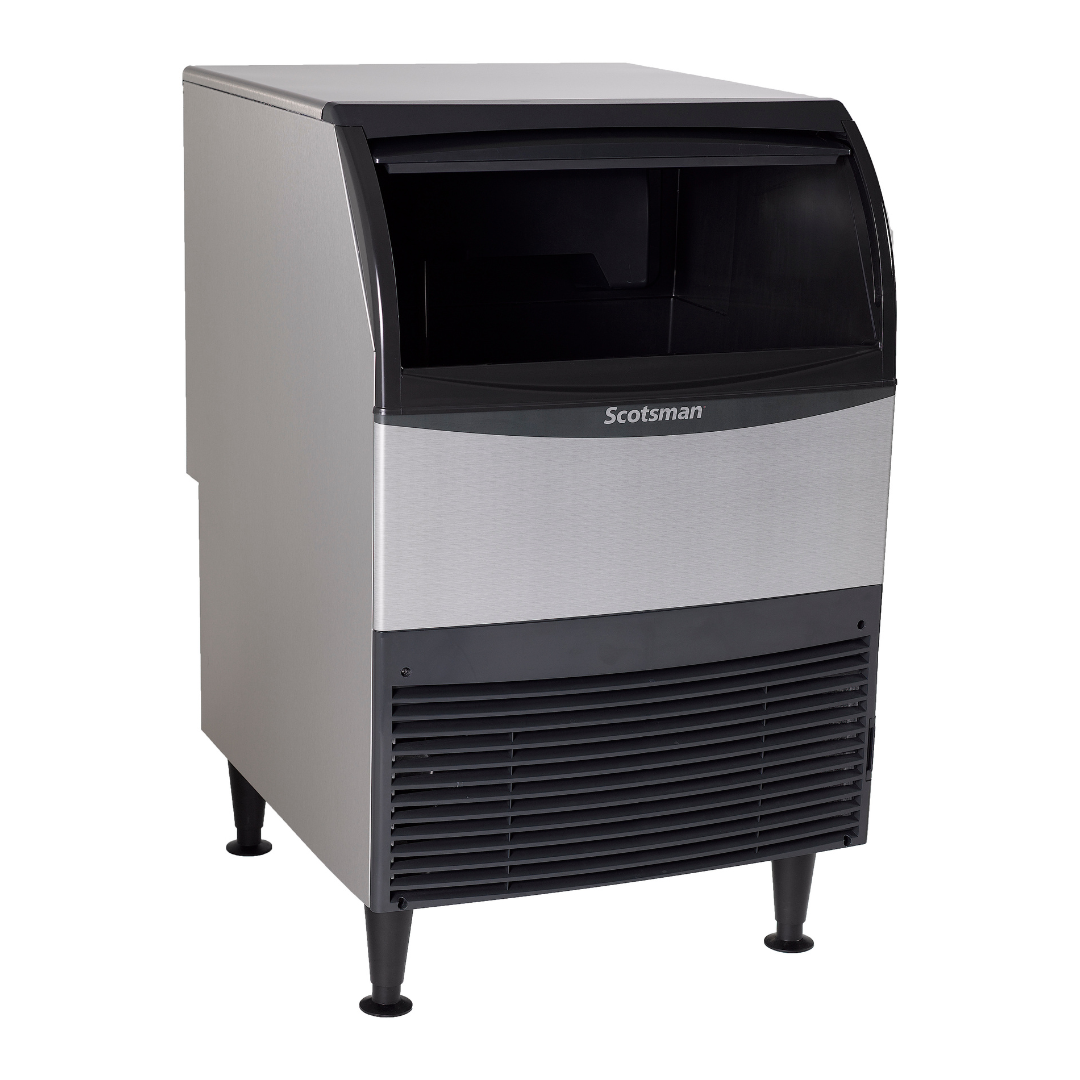

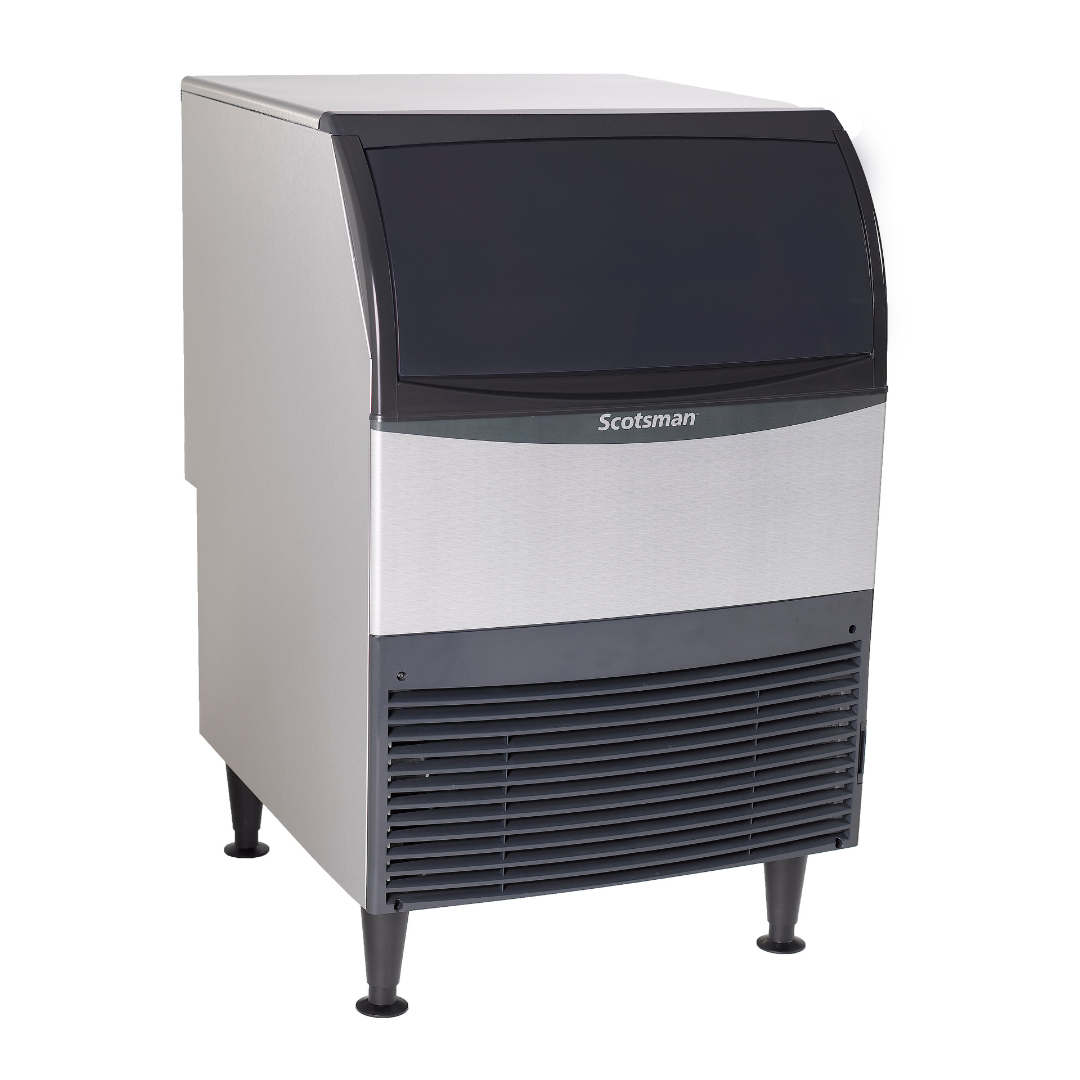

The Scotsman UN324AX-1 is a self-contained, air-cooled undercounter ice machine designed to produce Scotsman’s Original Chewable® Nugget Ice. It produces up to 340 lb. of nugget ice per 24 hours under 70°F air and 50°F water conditions and includes an insulated storage bin with a capacity of up to 80 lb.
Its compact 24-inch-wide cabinet is designed for commercial indoor installation where a high volume of nugget ice is required within a limited footprint. The machine uses R290 refrigerant and features front airflow, a cleanable external air filter, a stainless steel evaporator, a greaseless bearing system, an intuitive control panel, and a slide-back bin door for convenient access to stored ice.
Key Features
- Self-contained commercial undercounter nugget ice machine
- Produces Scotsman Original Chewable® Nugget Ice
- Maximum production of 340 lb. per 24 hours at 70°F air and 50°F water
- Produces 266 lb. per 24 hours at 90°F air and 70°F water
- Built-in insulated storage bin holds up to 80 lb. of ice
- Compact 24-inch-wide cabinet
- Air-cooled refrigeration system
- Uses environmentally responsible R290 refrigerant
- Front airflow design
- Air intake through the right front grille
- Warm air exhaust through the left front grille
- May be installed with zero rear clearance
- No additional top or side clearance required for normal installation

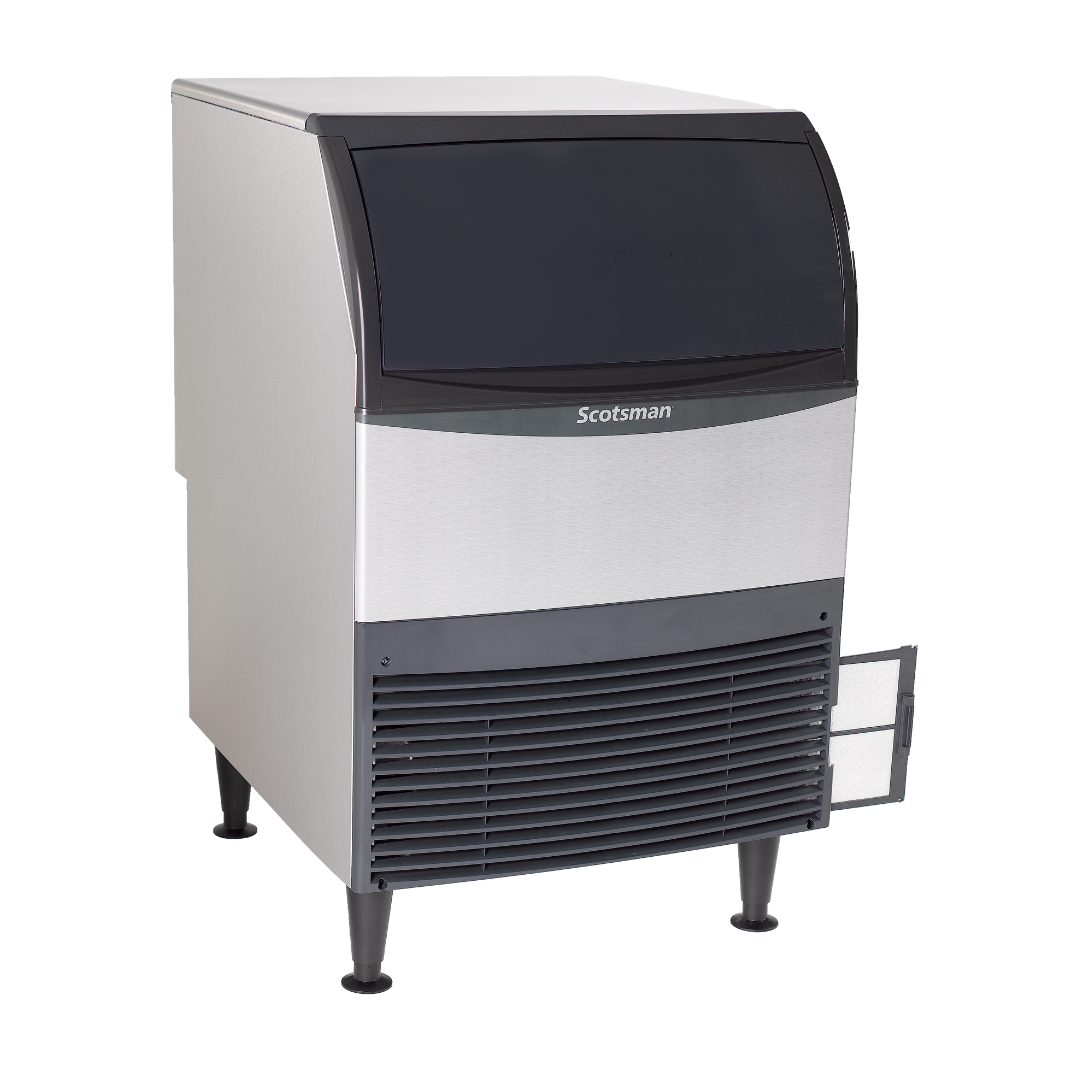

- External air filter can be removed for cleaning
- Greaseless bearing system reduces maintenance requirements
- Stainless steel evaporator provides durability
- Slide-back door provides convenient access to stored ice
- Intuitive control panel supports easy operation
- Automatic bin-level controls stop and restart ice production as needed
- Unit-specific QR code provides access to service manuals and warranty information
- Included adjustable legs
- Machine may also be installed without legs
- Optional floor-mounting kit lowers the installation height to approximately 33.5 inches
- Included ice scoop
- Included 5.5-foot power cord
- Includes a NEMA 5-15P plug
- Requires a gravity drain
- Built-in air-gap design provides backflow protection
- Requires a cold potable water connection
- Requires 115V / 60Hz / single-phase electrical service
- Maximum fuse or circuit-breaker size of 15 amps
- Meets U.S. Safe Drinking Water Act low-lead requirements
- NSF certified
- ETL listed
- AHRI certified
- Three-year parts and labor warranty
- Designed, engineered, and assembled in the USA
Specifications
| Specification | Details |
|---|---|
| Product Type | Self-contained undercounter nugget ice machine with storage bin |
| Ice Type | Original Chewable® Nugget Ice |
| Condenser Type | Air-cooled |
| Maximum Ice Production | 340 lb. per 24 hours at 70°F air / 50°F water |
| Ice Production at Higher Temperatures | 266 lb. per 24 hours at 90°F air / 70°F water |
| Storage Capacity | 80 lb. |
| Width | 24 in. |
| Depth | 28.5 in. |
| Height | 39 in. |
| Optional Reduced Height | Approximately 33.5 in. with compatible floor-mounting kit |
| Shipping Carton Dimensions | 28.75 in. W × 38.65 in. D × 39 in. H |
| Shipping Weight | 210 lb. |
| Installation | Undercounter or freestanding |
| Operating Environment | Indoor, controlled environment |
| Ventilation | Front airflow |
| Air Intake | Right front grille |
| Air Exhaust | Left front grille |
| Rear Clearance | May be installed with zero rear clearance |
| Suggested Side Clearance | 1/8 in. |
| Suggested Top Clearance | 1/4 in. |
| Refrigerant | R290 |
| Electrical Requirements | 115V / 60Hz / 1 phase |
| Maximum Fuse or Breaker Size | 15 amps |
| Electrical Connection | Cord-connected |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 5.5 ft. |
| Heat Rejection | 3,000 BTU per hour |
| Energy Consumption | 4.92 kWh per 100 lb. of ice |
| Potable Water Consumption | 12 gal. per 100 lb. of ice |
| Operating Air Temperature | 50–100°F |
| Operating Water Temperature | 40–100°F |
| Potable Water Pressure | 20–80 PSI |
| Minimum Water Conductivity | 10 microsiemens/cm |
| Potable Water Connection | 3/8 in. male flare |
| Bin Drain Connection | 3/4 in. FPT gravity drain |
| Drain Requirement | Rigid, properly sloped gravity drain |
| Evaporator Material | Stainless steel |
| Bearing System | Greaseless bearing |
| Air Filter | External, removable, and cleanable |
| Bin Door | Slide-back design |
| Included Accessories | Ice scoop, adjustable legs, and power cord |
| Certifications | NSF, ETL, and AHRI |
| Country of Assembly | USA |
