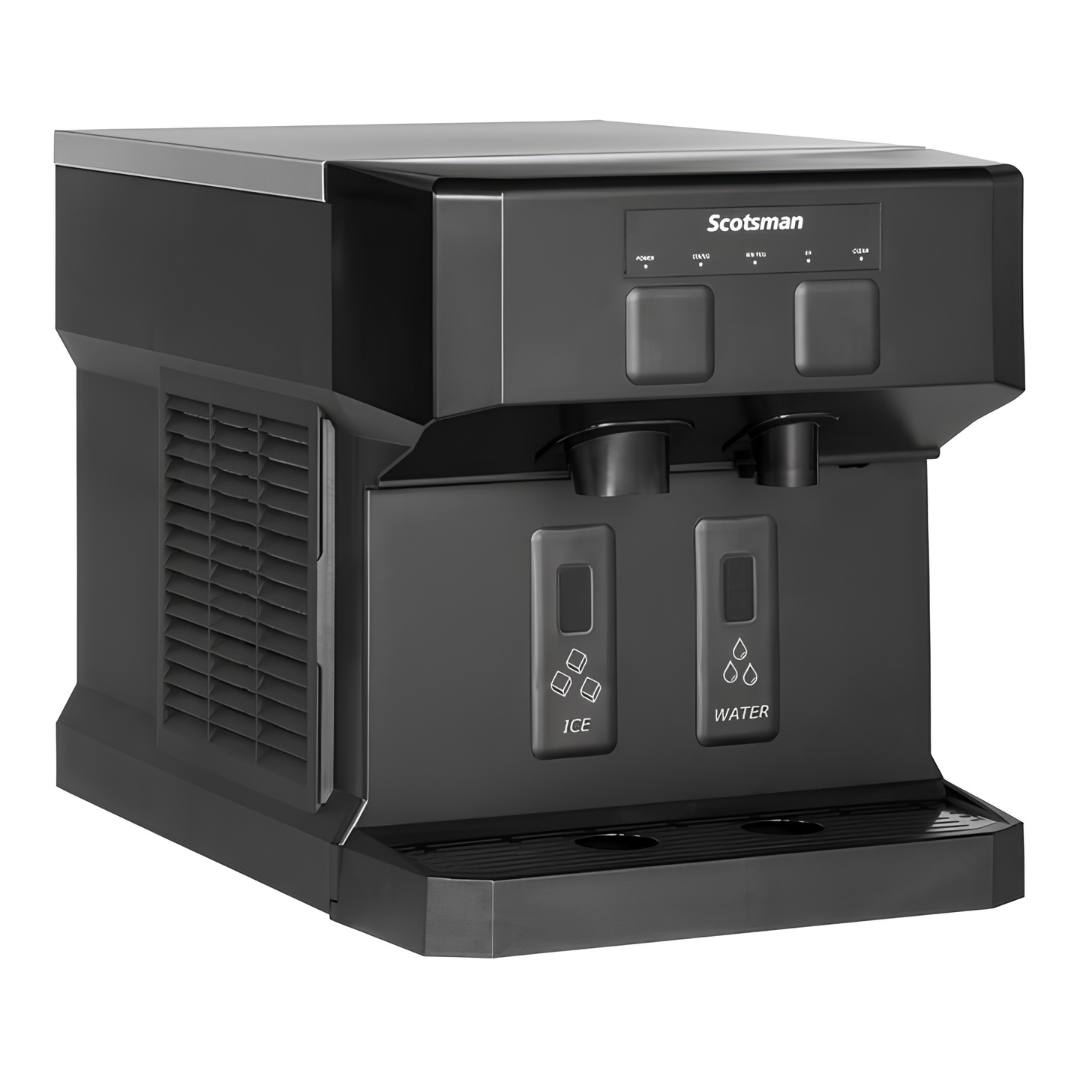

The Scotsman Meridian™ HID207AX-1A is a compact, air-cooled countertop ice and water dispenser designed to produce and dispense Scotsman’s chewable nugget ice. It produces up to 196 lb. of ice per 24 hours under 70°F air and 50°F water conditions and includes a built-in bin with approximately 7 lb. of ice storage capacity.
This commercial dispenser uses touch-free infrared sensors for sanitary ice and water dispensing. Its compact 16.05-inch-wide design is equipped with internal UV-LED water sanitation, SmoothStream™ water dispensing technology, AgION™ antimicrobial protection, removable components, and a sealed R290 refrigeration system. The unit can be installed on a suitable countertop or paired with the compatible Scotsman HSTCD16-A equipment stand.
Key Features
- Meridian™ Series compact ice and water dispenser
- Produces Scotsman chewable nugget ice
- Maximum production of 196 lb. per 24 hours at 70°F air and 50°F water
- Produces 160 lb. per 24 hours at 90°F air and 70°F water
- Built-in storage capacity of approximately 7 lb.
- Touch-free infrared ice and water dispensing
- Ice-only configuration available using the included snap-on panels
- Air-cooled refrigeration system
- Uses environmentally responsible R290 refrigerant

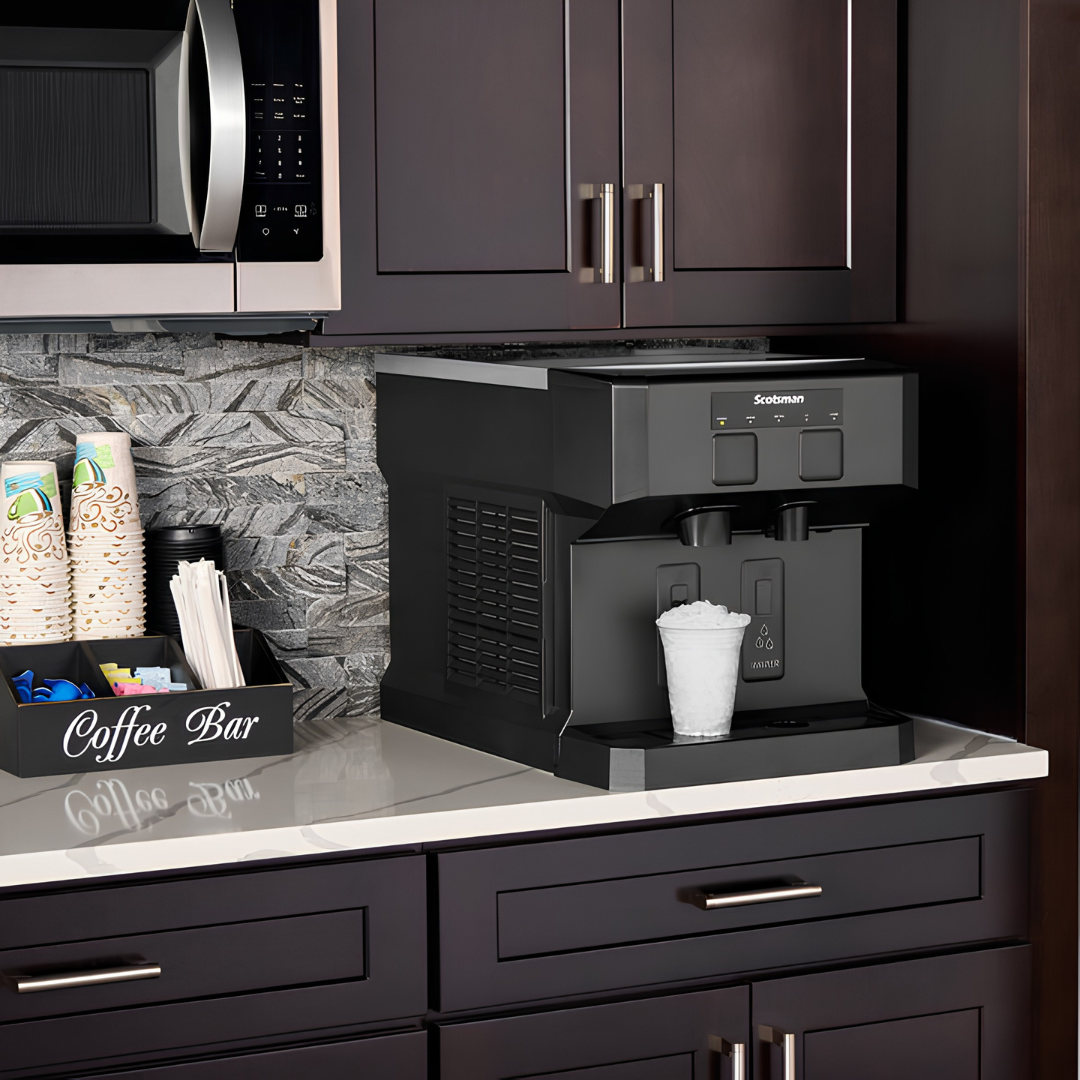

- Compact 16.05-inch-wide countertop design
- Contoured cabinet sides provide improved airflow in compact installations
- Internal UV-LED module treats incoming water
- UV status indicator shows when the sanitation module is active
- AgION™ antimicrobial protection incorporated into key components
- Sealed refrigeration system helps minimize airborne contamination
- Sealed, maintenance-free bearing reduces preventive maintenance requirements
- SmoothStream™ water dispensing technology helps reduce splashing
- Illuminated dispensing area
- AutoAlert™ indicator panel displays power, machine status, bin-full, UV, and cleaning information

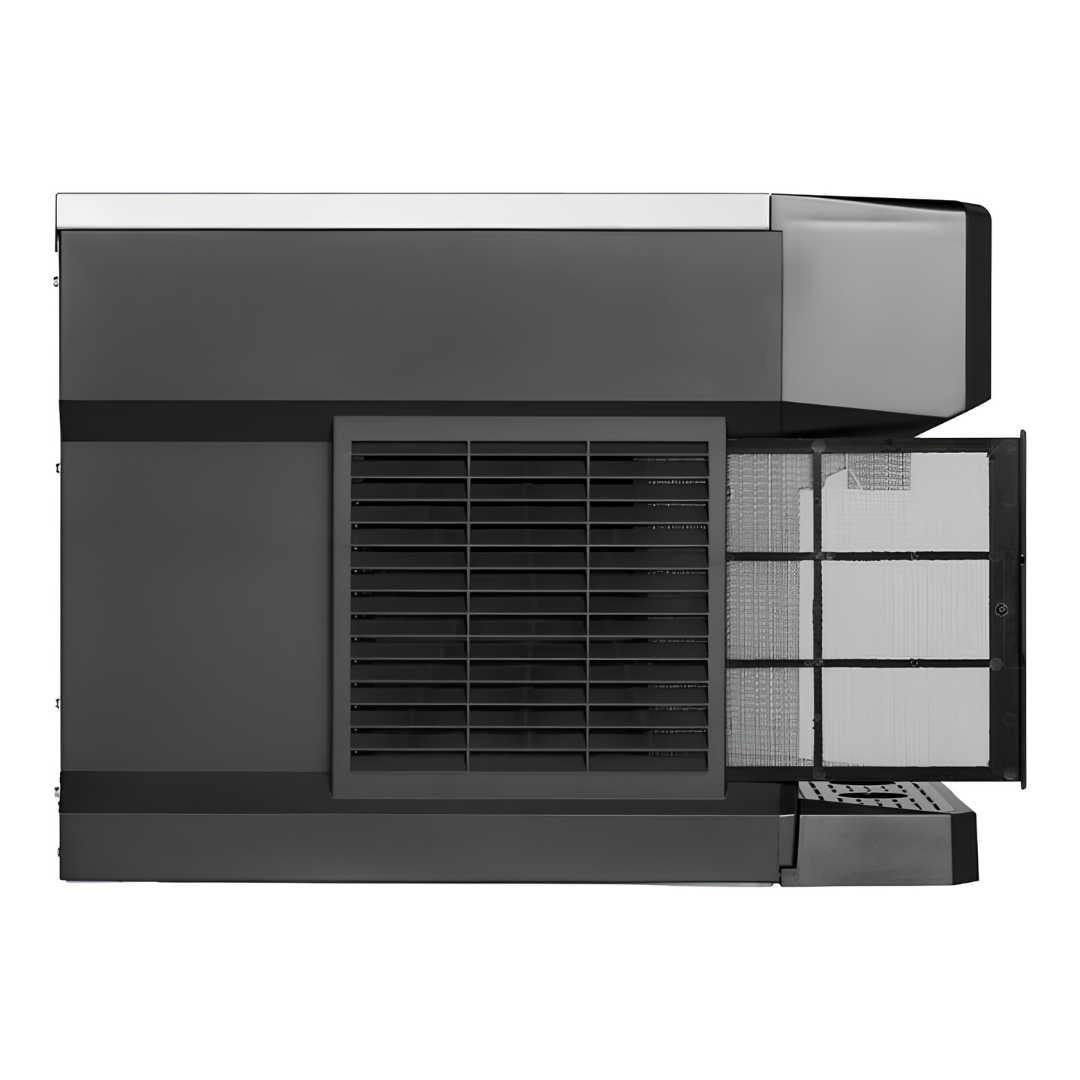

- Fully removable air filter, dispensing chutes, sink, grill, and ice bin
- Cleanable air filter included
- Stainless steel evaporator and exterior panels
- Ice and water dispensing automatically stops after a timed interval
- ADA-compliant dispensing reach
- Unit-specific QR code provides access to service and warranty information
- Designed for countertop installation or use with a compatible equipment stand
- Includes a 7.5-foot power cord
- Includes a NEMA 5-15P plug
- Requires 115V / 60Hz / single-phase electrical service
- Maximum fuse size of 15 amps
- NSF certified
- cULus listed
- AHRI certified
- Designed, engineered, and assembled in the USA
Specifications
| Specification | Details |
|---|---|
| Series | Meridian™ Series |
| Product Type | Compact countertop nugget ice and water dispenser |
| Ice Type | Nugget ice |
| Dispensing Method | Touch-free infrared sensors |
| Ice-Only Configuration | Available using included snap-on panels |
| Condenser Type | Air-cooled |
| Maximum Ice Production | 196 lb. per 24 hours at 70°F air / 50°F water |
| Ice Production at Higher Temperatures | 160 lb. per 24 hours at 90°F air / 70°F water |
| Storage Capacity | Approximately 7 lb. |
| Width | 16.05 in. |
| Depth | 23.44 in. |
| Height | 17.54 in. |
| Shipping Carton Dimensions | 25.75 in. W × 27.15 in. D × 23.95 in. H |
| Shipping Weight | 80 lb. |
| Installation | Countertop or compatible equipment stand |
| Refrigerant | R290 |
| Refrigerant Charge | 3 oz. |
| Electrical Requirements | 115V / 60Hz / 1 phase |
| Minimum Circuit Ampacity | 11.8 amps |
| Maximum Fuse Size | 15 amps |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |
| Heat Rejection | 3,200 BTU per hour |
| Energy Consumption | 4.9 kWh per 100 lb. of ice |
| Potable Water Consumption | 12 gal. per 100 lb. of ice |
| Potable Water Pressure | 20–80 PSI |
| Operating Air Temperature | 50–100°F |
| Operating Water Temperature | 40–100°F |
| Dispensing System | Touch-free ice and water dispensing |
| Water Sanitation | Internal UV-LED sanitation module |
| Water Dispensing System | SmoothStream™ water dispensing technology |
| Antimicrobial Protection | AgION™ antimicrobial protection on key components |
| Air Filter | Removable and cleanable |
| Airflow Direction | Left to right |
| Exterior Material | Stainless steel exterior panels |
| Evaporator Material | Stainless steel |
| Certifications | ADA reach compliant, NSF, cULus, and AHRI |
| Country of Assembly | USA |
Gallery
