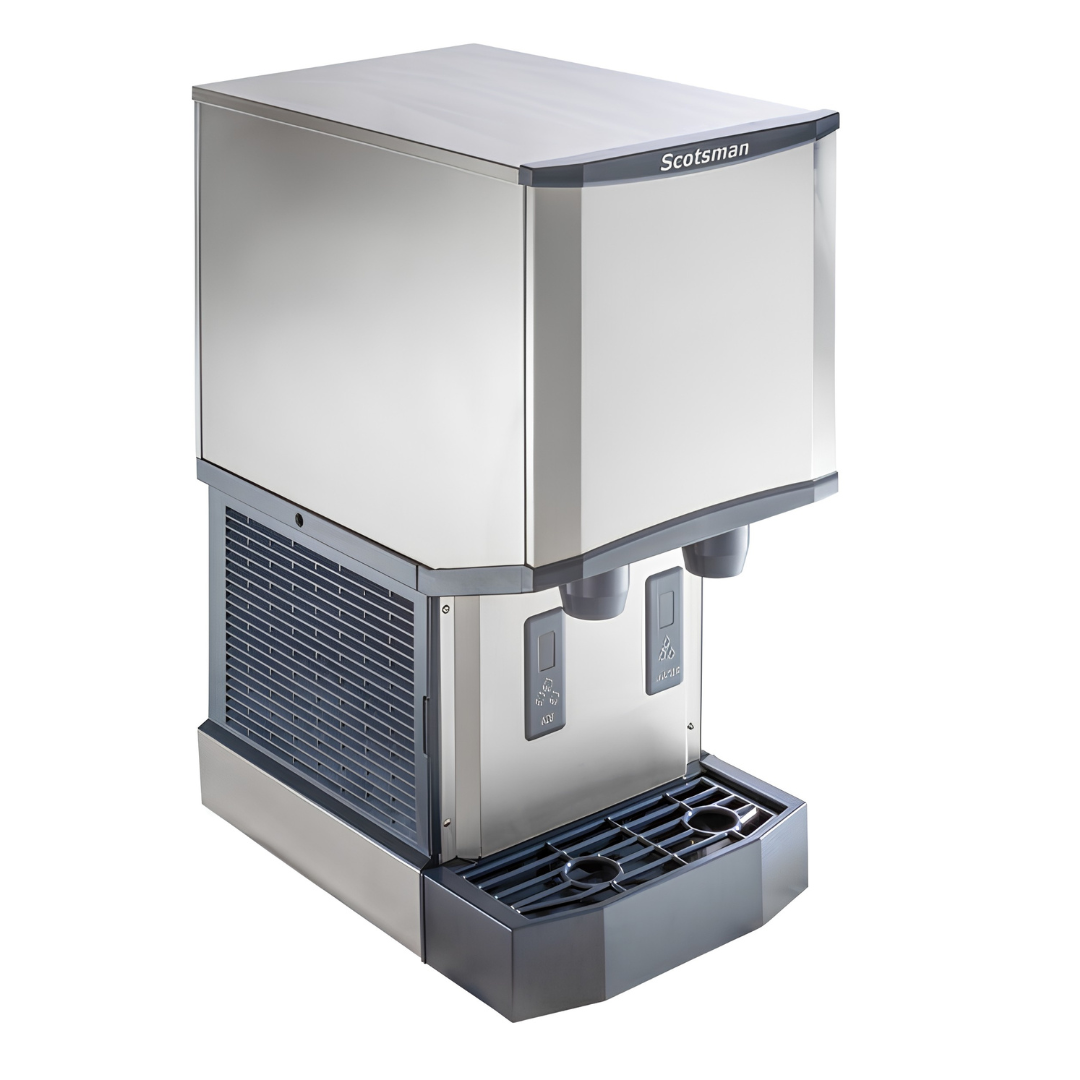

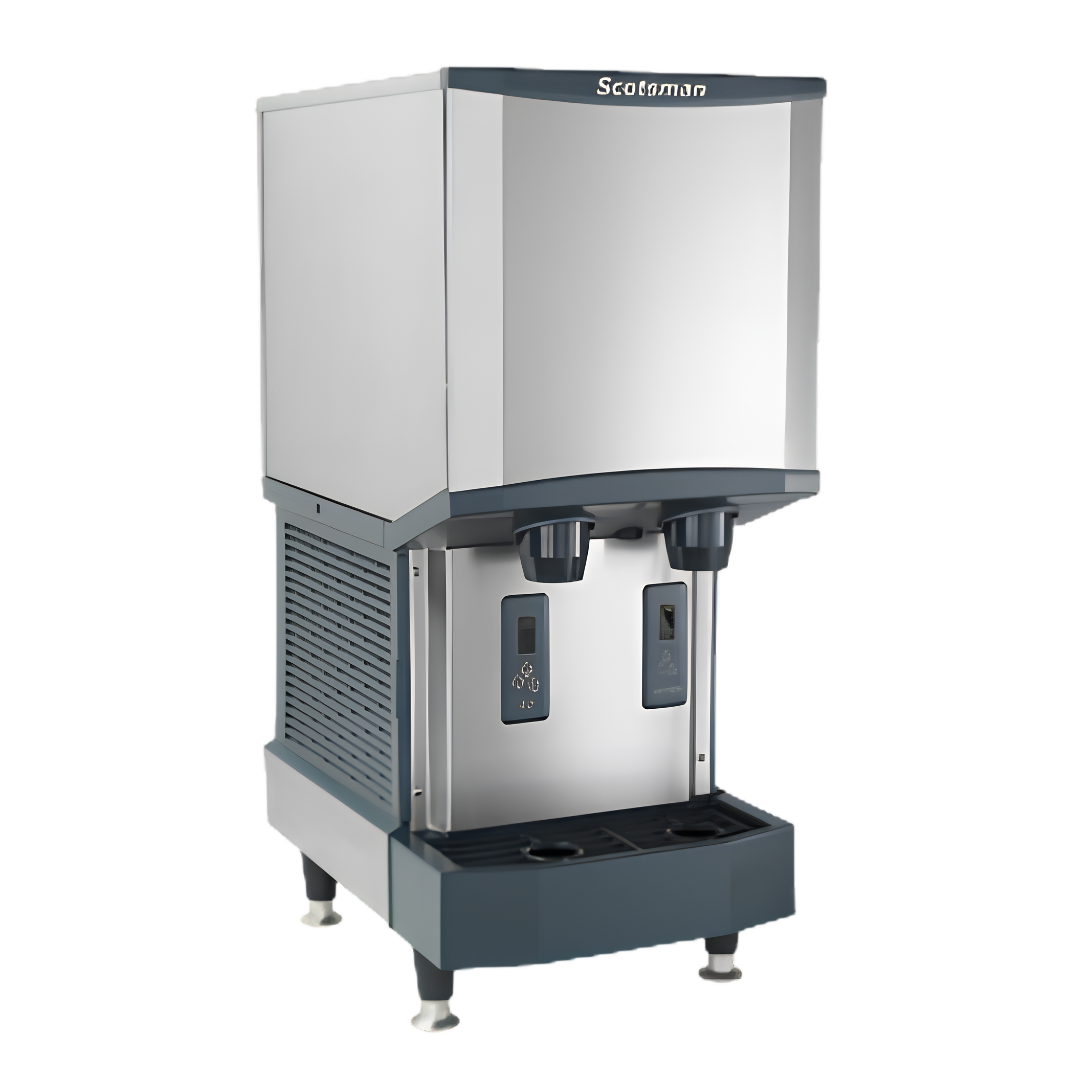

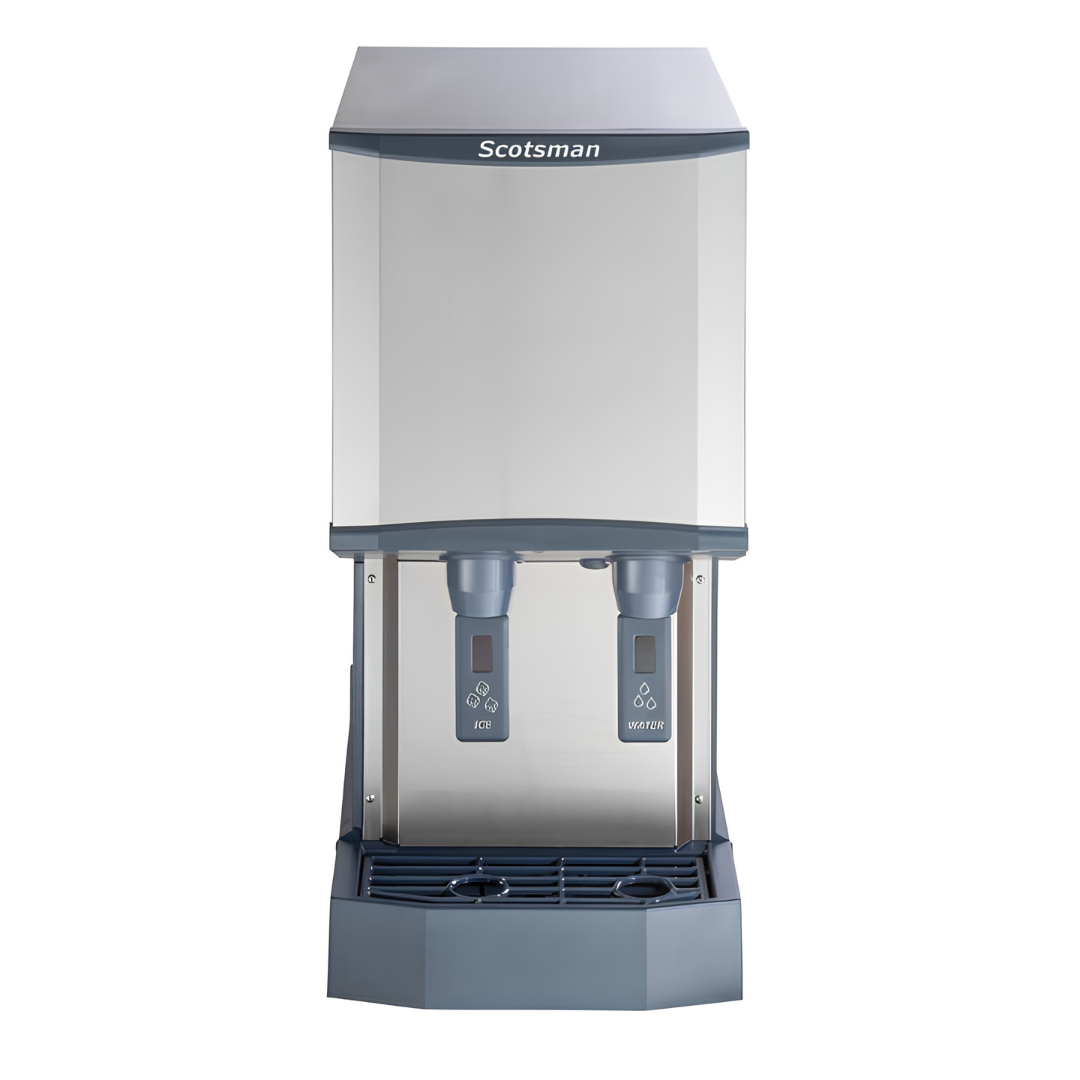

The Scotsman Meridian™ HID312AX-1A is an air-cooled countertop ice and water dispenser designed to produce and dispense Scotsman’s chewable nugget ice. It produces up to 320 lb. of ice per 24 hours under 70°F air and 50°F water conditions and includes a built-in bin with 12 lb. of ice storage capacity.
This commercial dispenser uses touch-free infrared sensors for sanitary ice and water dispensing. Its compact 16.25-inch-wide design, removable components, front-accessible air filter, stainless steel evaporator, SmoothStream™ water dispensing technology, and R290 refrigeration system provide convenient operation, cleaning, and maintenance. It can be installed directly on a suitable countertop or paired with a compatible Scotsman equipment stand.
Key Features
- Meridian™ Series commercial ice and water dispenser

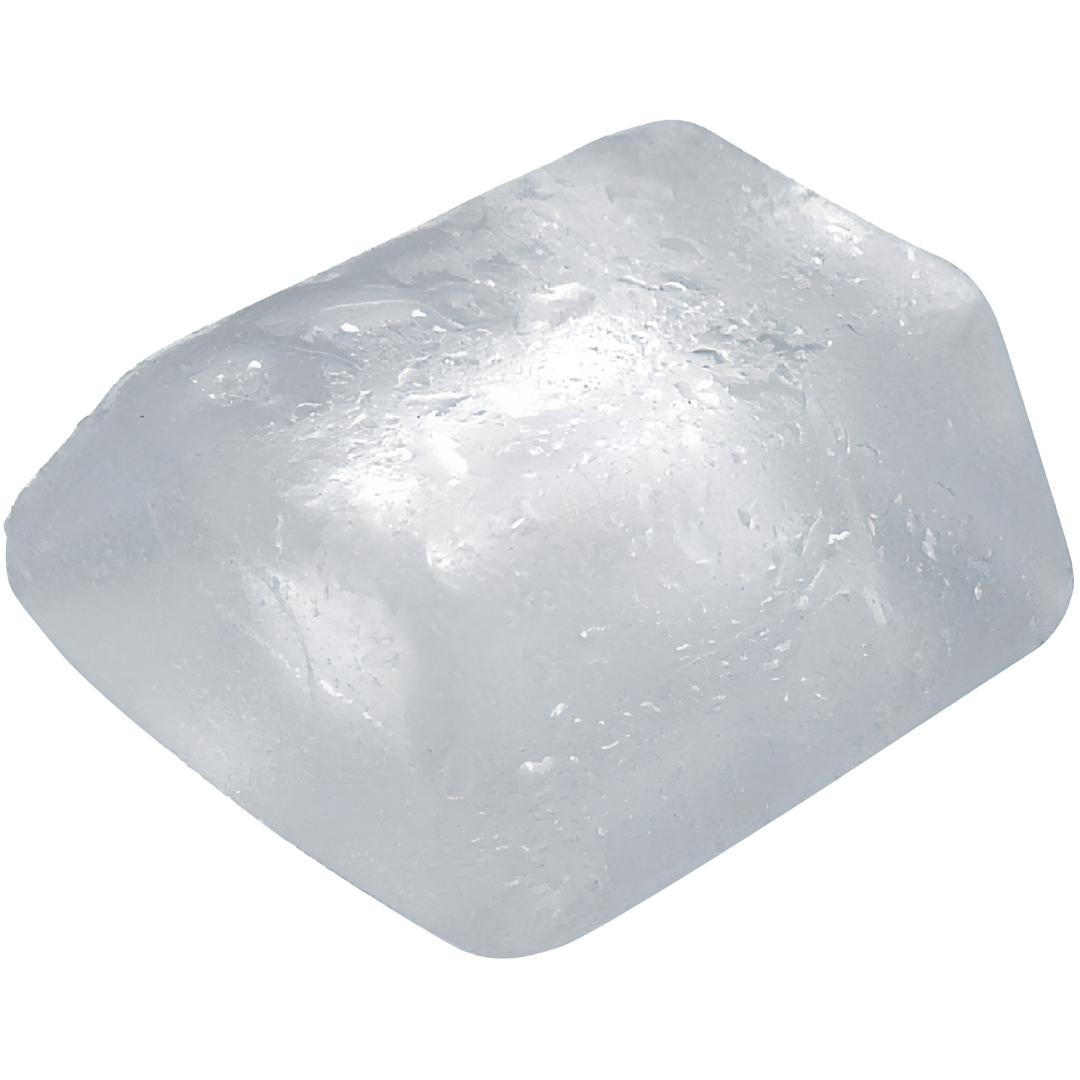

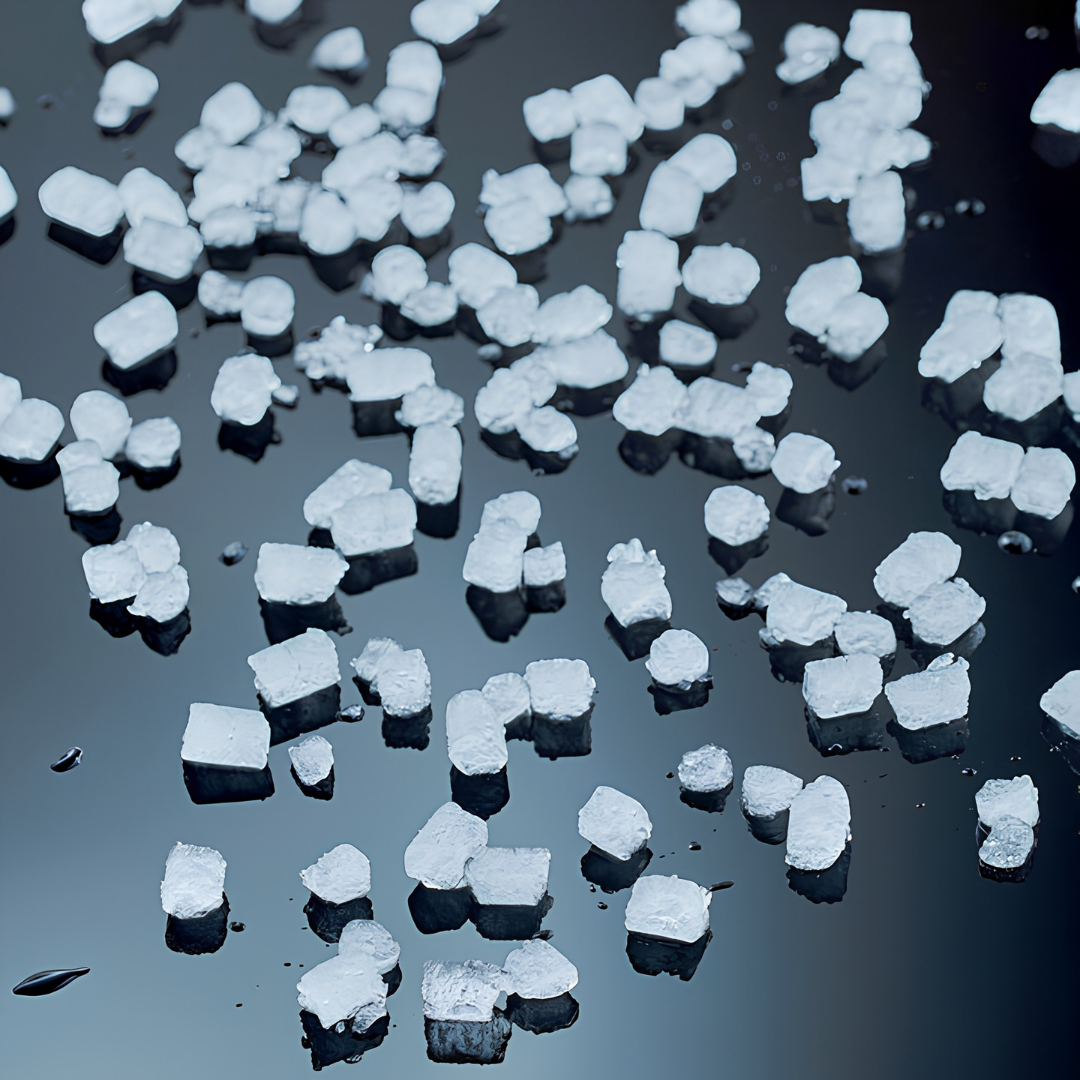

- Produces Scotsman chewable nugget ice
- Maximum production of 320 lb. per 24 hours at 70°F air and 50°F water
- Produces 245 lb. per 24 hours at 90°F air and 70°F water
- Built-in 12 lb. ice storage bin
- Touch-free infrared ice and water dispensing
- Air-cooled refrigeration system
- Uses environmentally responsible R290 refrigerant
- Compact 16.25-inch-wide countertop design
- Space-maximizing contoured cabinet design
- SmoothStream™ water dispensing technology helps reduce splashing
- AgION™ antimicrobial protection incorporated into key components
- Sealed refrigeration system helps minimize airborne contamination
- Fully removable ice bin, dispensing spouts, air filter, sink, and grill
- Front-accessible air filter for easier cleaning and maintenance
- Stainless steel evaporator and exterior panels
- Enlarged dispensing area with 11-inch clearance
- Unit-specific QR code provides access to service and warranty information
- Intuitive diagnostic indicator lights
- Industry-leading energy and water efficiency
- Designed for countertop installation or use with a compatible equipment stand

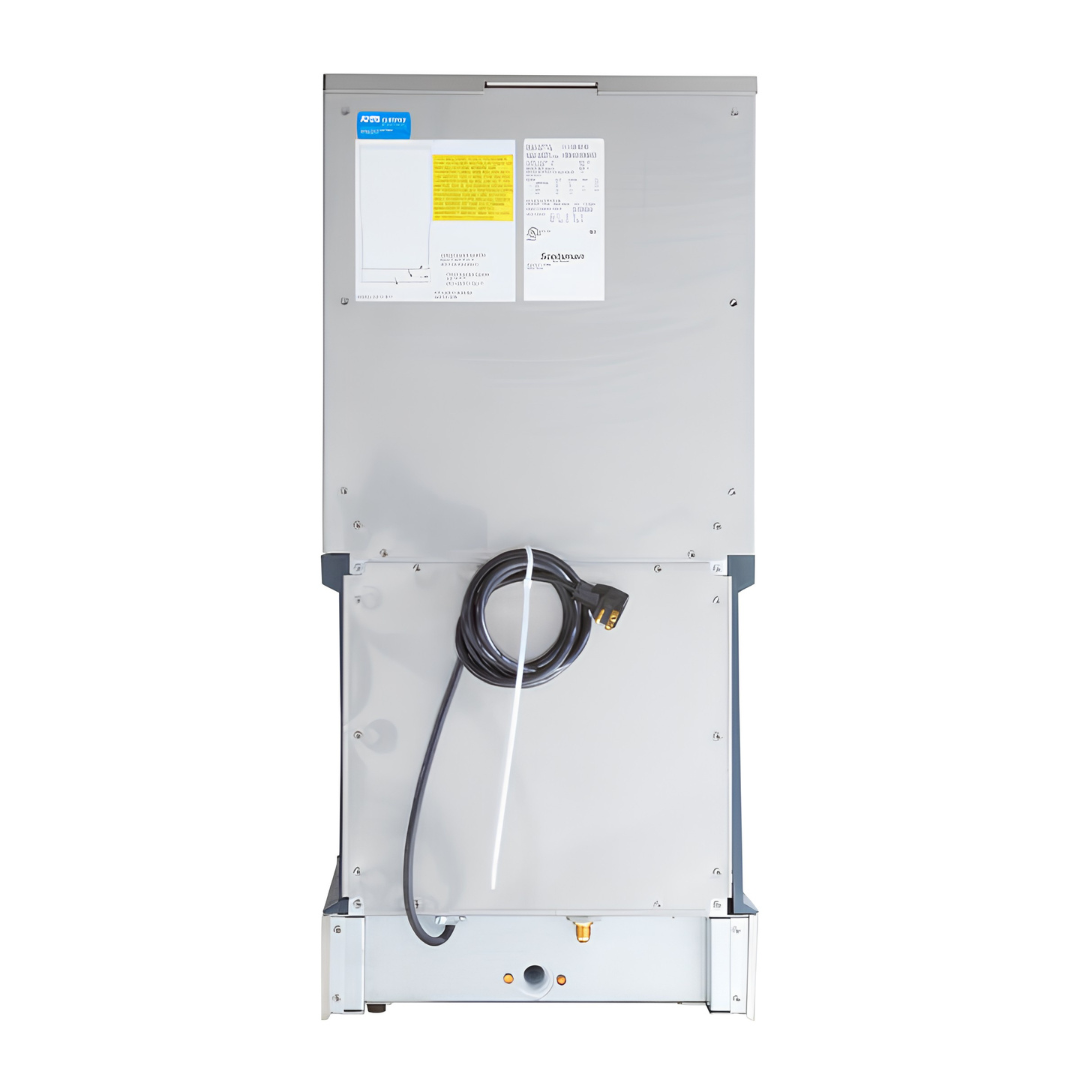

- Includes a 7.5-foot power cord
- Includes a NEMA 5-15P plug
- Requires 115V / 60Hz / single-phase electrical service
- Maximum fuse size of 15 amps
- Meets ADA reach requirements
- Meets U.S. Safe Drinking Water Act low-lead requirements
- NSF certified
- cULus listed
- AHRI certified
- Designed, engineered, and assembled in the USA
Specifications
| Specification | Details |
|---|---|
| Series | Meridian™ Series |
| Product Type | Countertop nugget ice and water dispenser |
| Ice Type | Nugget ice |
| Dispensing Method | Touch-free infrared sensors |
| Condenser Type | Air-cooled |
| Maximum Ice Production | 320 lb. per 24 hours at 70°F air / 50°F water |
| Ice Production at Higher Temperatures | 245 lb. per 24 hours at 90°F air / 70°F water |
| Storage Capacity | 12 lb. |
| Width | 16.25 in. |
| Depth | 24.38 in. |
| Height | 35 in. |
| Shipping Carton Dimensions | 24.25 in. W × 27.13 in. D × 41.5 in. H |
| Shipping Weight | 183 lb. |
| Dispensing Clearance | 11 in. |
| Installation | Countertop or compatible equipment stand |
| Refrigerant | R290 |
| Electrical Requirements | 115V / 60Hz / 1 phase |
| Maximum Fuse Size | 15 amps |
| Electrical Connection | Power cord |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |
| Heat Rejection | 3,200 BTU per hour |
| Energy Consumption | 4.11 kWh per 100 lb. of ice |
| Potable Water Consumption | 12 gal. per 100 lb. of ice |
| Water Inlet | 3/8 in. |
| Exterior Material | Stainless steel exterior panels |
| Evaporator Material | Stainless steel |
| Air Filter | Removable, front-accessible air filter |
| Water Dispensing System | SmoothStream™ water dispensing technology |
| Antimicrobial Protection | AgION™ antimicrobial protection on key components |
| Certifications | ADA reach compliant, NSF, cULus, and AHRI |
| Country of Assembly | USA |
